Prism

The Prism lens records every call made with prism-php/prism while a request, job, command or MCP call is recorded: text, structured, stream, embeddings, images, moderation, text to speech and speech to text. Each call gets its prompt, response, tokens and time, and every tool Prism runs during a call is timed on its own.

Rows

Section prism: one row per call

A row is written when the call ends. For a stream, that is when it has been read to the end, when it throws, or when your code stops reading it.

Field	Meaning	Unit	Missing when
operation	text, structured, stream, embeddings, images, moderation, text_to_speech or speech_to_text.	-	never
nested	true when the call was made while another Prism call ran, such as from one of its tools.	-	never (false)
provider	The provider the call used.	-	the request does not name one
model	The model, taken from the response when it reports one.	-	the request and response do not name one
status	ok, failed, or abandoned for a stream that was not read to the end.	-	never
prompt	The prompt. For embeddings, the inputs one per line; for text to speech, the text to speak. Shortened to max_text characters when set.	-	the operation has no prompt
response	The response text. For a stream, the text read so far. Shortened to max_text characters when set.	-	the operation returns no text, the call failed, or a stream produced no text
structured	The structured output.	-	not a structured call, or it failed
finish_reason	Why the model stopped.	-	the response has none, the call failed, or a stream was not read to the end
steps	How many steps the call took.	count	never (0)
tool_calls	How many tool calls the response reports.	count	never (0)
tools	The names of the tools offered with the request.	-	empty when no tools were offered
failed_tools	For a stream, the names of tools the stream reported as failed.	-	empty for other operations, or when none failed
tokens	input, output, cache_read, cache_write and reasoning tokens. Embeddings only fill input.	tokens	never (zeros)
streamed	true for a stream.	-	never (false)
error	An error message a stream reported while it kept going.	-	no error was reported, or not a stream
exception	The exception the call threw.	-	the call did not throw
duration	How long the call took. For a stream, the time from the first read to the last.	ms	never
time	When the call started, counted from the start of the capture.	ms	never
origin	The line in your code that made the call.	-	no application code was on the way

Section prism_tools: one row per tool call

Field	Meaning	Unit	Missing when
tool	The tool's name.	-	never
nested	true when the call that ran the tool is itself nested.	-	never (false)
status	ok or failed.	-	never
arguments	The arguments the model passed to the tool, masked like request input.	-	never
result	The text the tool returned. JSON text with keys is masked like request input. Shortened to max_text characters when set.	-	the tool failed, or returned something other than text
exception	The exception the tool threw.	-	the tool succeeded
duration	How long the tool took, including any Prism calls it made itself.	ms	never
time	When the tool started, counted from the start of the capture.	ms	never
origin	The line in your code that led to the tool call.	-	no application code was on the way

Tool rows do not say which call they belong to; the timeline shows that.

In the timeline

Each call is a prism.call span named after the operation, provider and model, such as text openai/gpt-4o. A stream has a prism.step span per step (step 1, step 2, ...). Each tool call is a prism.tool span under the call or step that was running, with its status and time (tool_ms).

A tool that makes a Prism call of its own, for example a tool that hands part of the work to another model, works as a sub-agent: that call appears as a prism.call span under the tool's prism.tool span, and gets its own row in prism. The tool's duration includes it.

Totals, warnings and errors

The summary gets these totals when the capture has at least one prism row:

Total	Label	Value
prism_ms	spent	The duration of the prism rows that are not nested added up, in ms. A call made inside a tool runs in the time of the call that ran the tool, so it is not added again.
prism_tokens	-	input, output, cache_read, cache_write and reasoning tokens over all rows.
prism_by_model	-	The number of calls per provider/model.
prism_calls	calls	The number of prism rows, nested calls included.
prism_tool_ms	in tools	The duration of the prism_tools rows that are not nested added up, in ms. Only when tools ran.
prism_tool_calls	tool calls	The number of prism_tools rows, nested ones included. Only when tools ran.

This lens reports no warnings. It reports these errors, at most five per capture:

• Prism {operation} on {provider}/{model} failed: {message} - a call ended with status failed.
• Prism tool {name} failed: {message} - a tool threw.
• Tool {name} failed during Prism {operation} on {provider}/{model}. - a stream reported a failed tool, and the capture has no prism_tools rows (for instance a faked stream, where no tool actually ran). When tool rows exist, the error above is used instead.

A stream with status abandoned and a stream error are not reported as errors.

See Warnings and errors for how they are shown.

In the dashboard

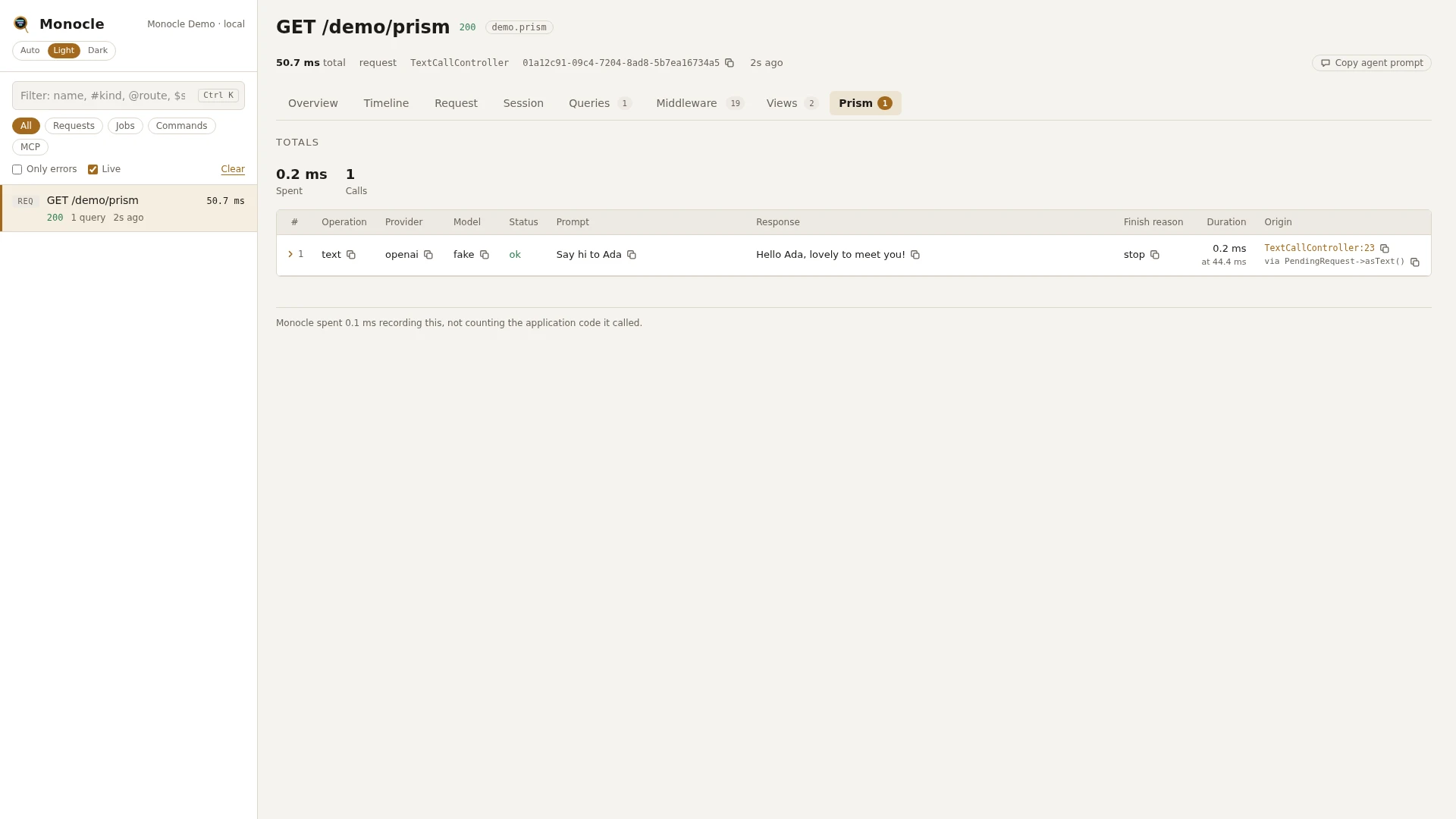

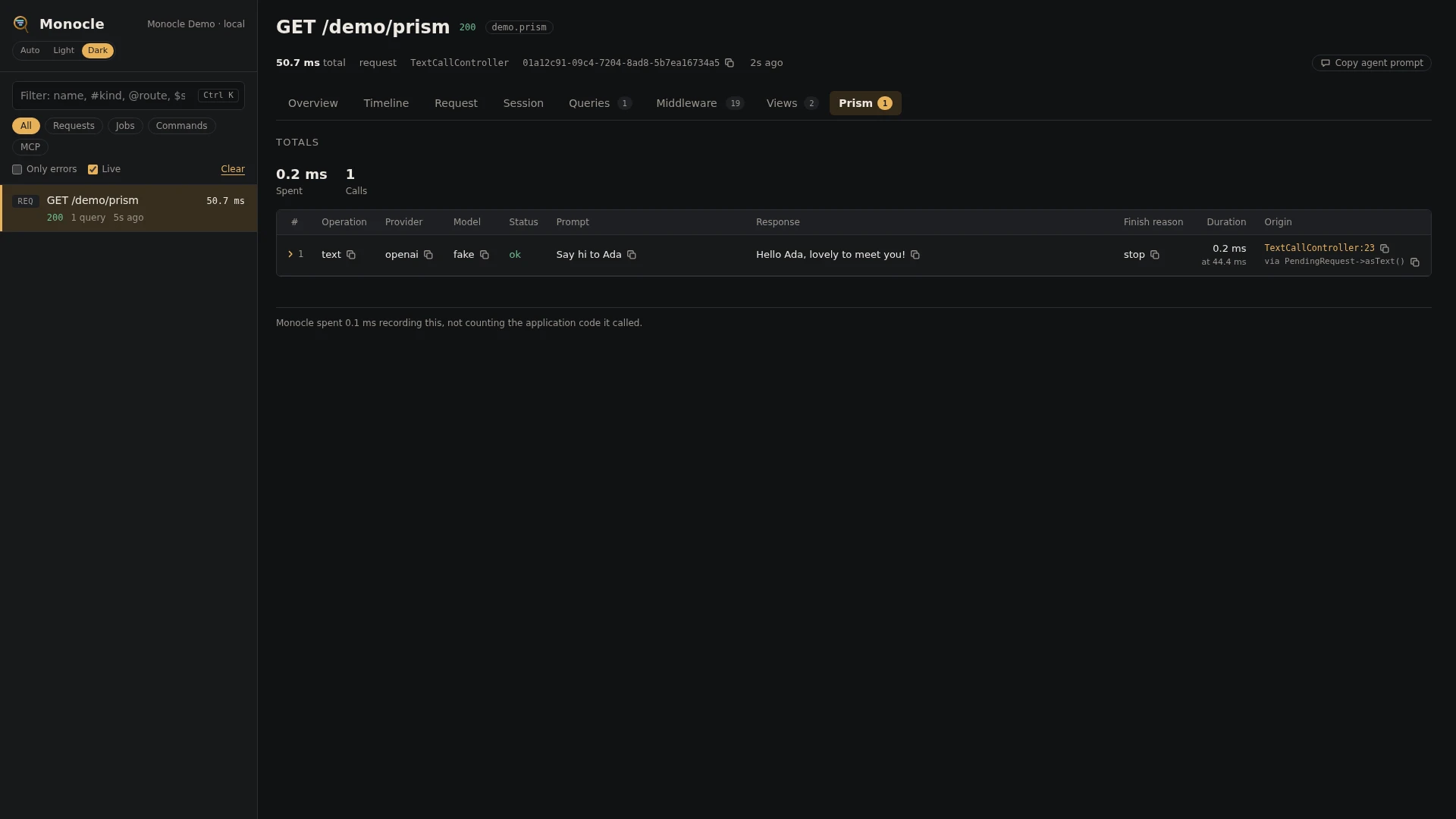

The Prism tab has two tables, both in the order things happened.

• The calls (prism). The columns are the fields that have a value in some row, up to eight, with duration last. status is coloured.
• Tool calls (prism_tools), with the columns tool, status and duration, plus where in your code it came from. Its chips group the tool calls by tool, each group with its count, failures and timing.

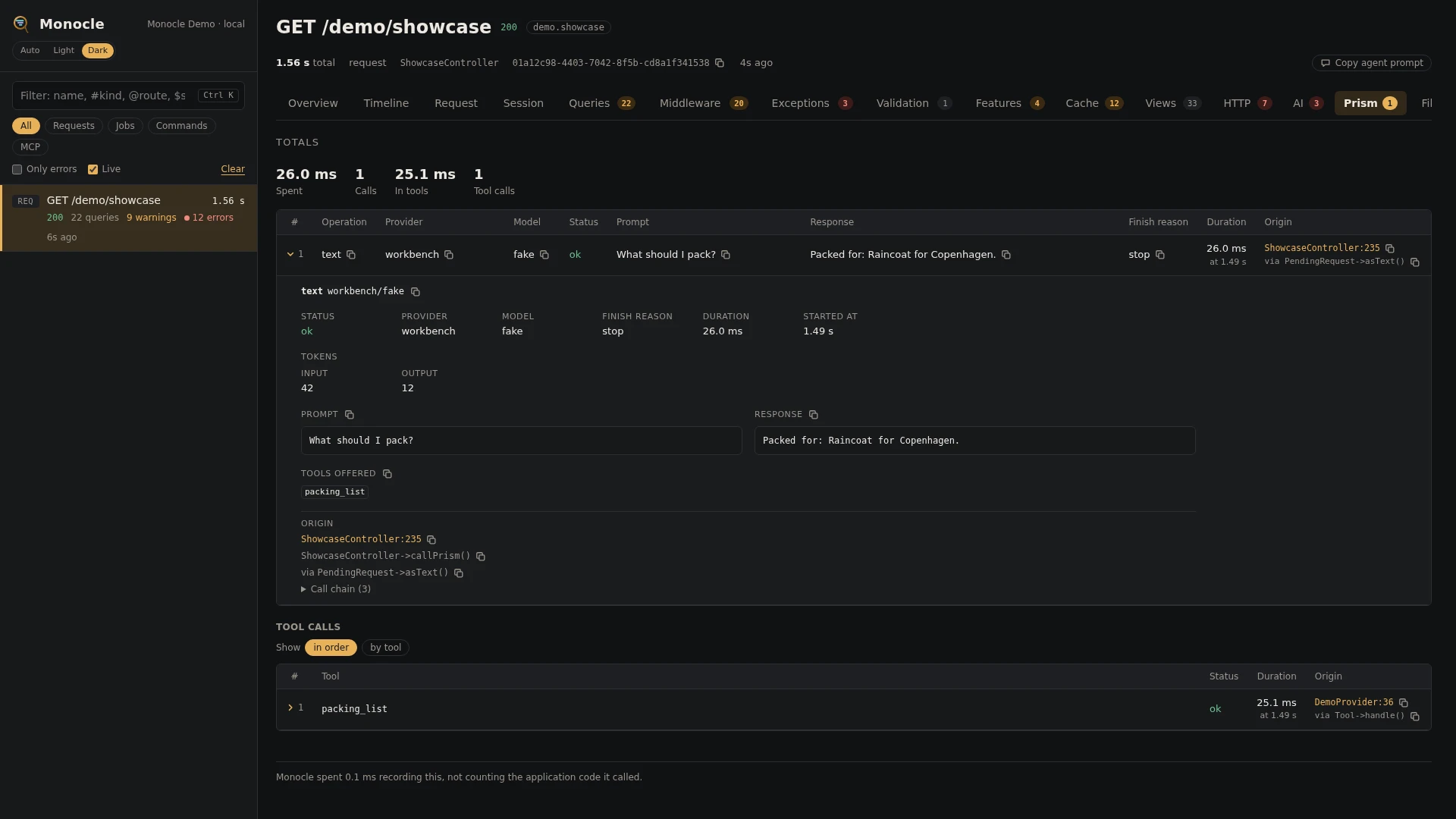

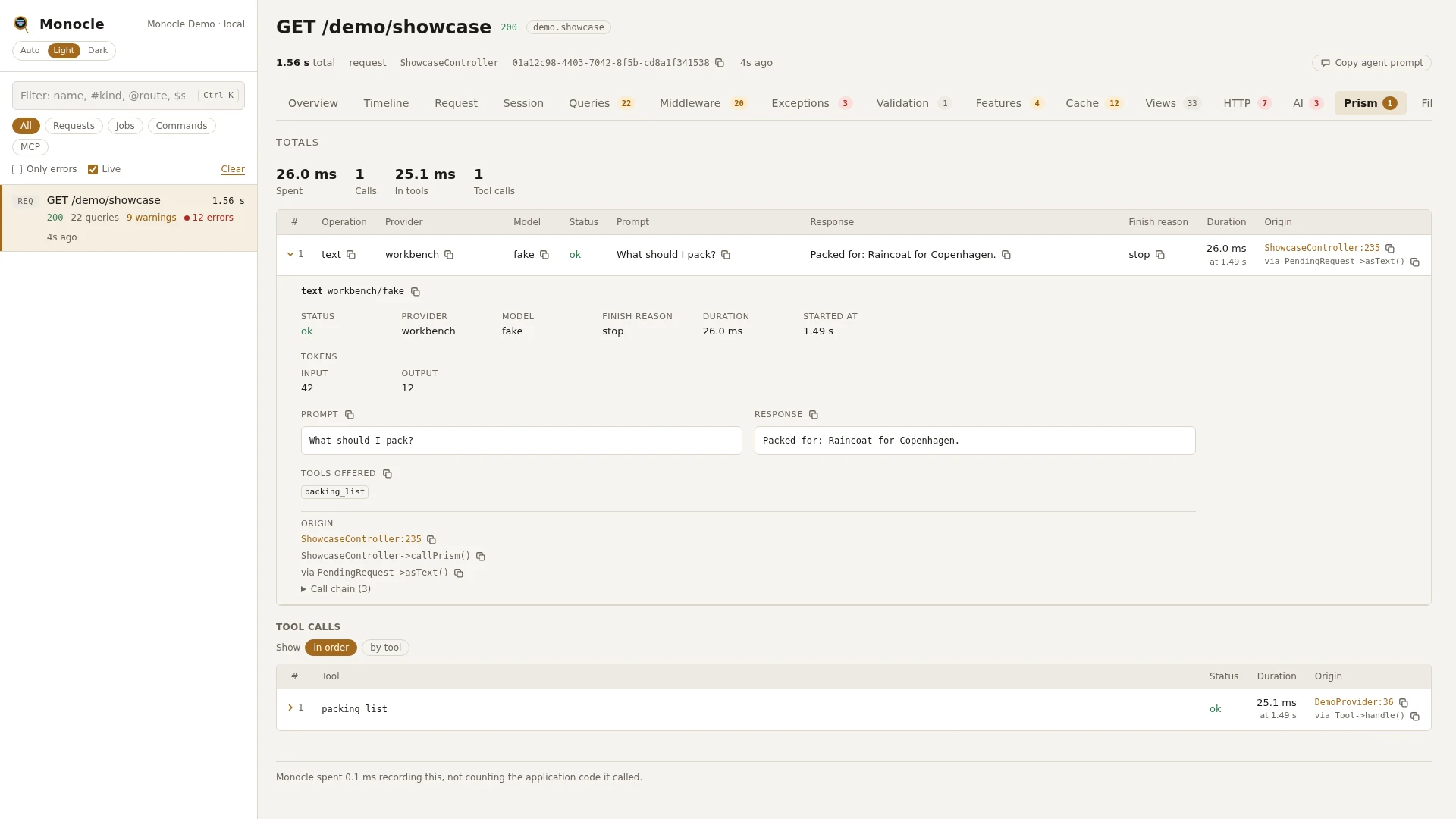

Click a row to fold it out. A call shows its kind (text, structured, stream, embeddings, images, moderation, text to speech or speech to text), provider and model, then its status, finish reason, steps, tool calls, whether it was streamed or nested, its duration and when it started. Below that come the tokens (input, output, and cache read, cache write and reasoning when there are any), the exception or stream error when it failed, the prompt and the response (or the structured output, pretty printed) in boxes that scroll and copy, the tools it offered (failed ones in red) and the line in your code that made the call.

A tool call folds out to its status, whether a nested call ran it, its duration, the exception when it failed, the arguments and the result (JSON pretty printed), and where in your code it came from.

The Timeline tab shows the call, step and tool spans described above.

For agents

Find the slowest tools in the latest capture:

{
  "tool": "monocle-rows",
  "arguments": {
    "section": "prism_tools",
    "sort": "duration", "dir": "desc",
    "fields": ["tool", "status", "duration", "exception.message"]
  }
}

List the calls that did not finish normally, failed or abandoned:

{
  "tool": "monocle-rows",
  "arguments": {
    "section": "prism",
    "where": [{"field": "status", "op": "!=", "value": "ok"}],
    "fields": ["operation", "provider", "model", "status", "error", "exception.message", "duration"]
  }
}

See which call each tool belongs to, and calls made from inside tools:

{
  "tool": "monocle-rows",
  "arguments": {
    "section": "timeline",
    "kinds": ["prism.call", "prism.step", "prism.tool"]
  }
}

To find captures that made Prism calls at all, use monocle-list with "has": ["prism"]. See For AI agents for every argument.

Configuration

Turn the lens on or off, or pass options, under lenses in config/monocle.php, keyed by PrismLens::class: true runs it with defaults, false turns it off, and an array sets options. See Lenses.

Option	Default	Effect
max_text	null	Shortens prompts, responses and tool results to this many characters, followed by .... null keeps them whole. Arguments and structured output are never shortened.

Other settings that affect this lens:

• origin - whether rows get an origin, and how many lines of the call chain it has.
• except - calls made in a request or command that is not recorded are not recorded either.
• dashboard.tabs - where the Prism tab sits among the tabs.
• Masking - tool arguments, and JSON tool results with keys, are masked like request input. Use PrismLens::class as the key under mask.inputs for patterns that only apply here. Prompts and responses are free text and are stored as they are.

use ExeQue\Monocle\Lenses\Packages\Prism\PrismLens;

'lenses' => [
    // ...
    PrismLens::class => [
        'max_text' => 2000,
    ],
],

Requirements and limits

• Needs prism-php/prism. Without it the lens does nothing.
• Calls made with Prism::fake() are recorded too.
• Only tools given to Prism as Tool objects are timed.
• Prompts, responses and plain-text tool results are not masked.
• The HTTP requests Prism sends to the provider are recorded by the HTTP client lens, not here.
• prism_ms and prism_tool_ms count time only at the top: a call made while another call ran, and the tools it ran, are part of that call. Work your code does between two events of a stream it reads is not, so a call made there counts on its own while the stream's duration includes it too.
