Event sourcing

The Event sourcing lens records what spatie/laravel-event-sourcing did in a request, job or command: the events it stored, the projectors and reactors that handled them and how long each took, and the aggregate roots it retrieved and persisted. It writes one row per stored event to section event_sourcing and one row per aggregate root to section aggregates.

Rows

Stored events

One row for each event the capture stored, or handled (a queued projector handles events another capture stored).

Field	Meaning	Unit	Missing when
event	the event class	-	never
stored_event_id	the id of the stored event	-	never
aggregate_uuid	the uuid of the aggregate root that recorded it	-	null for an event fired on its own
aggregate_version	the aggregate root's version after this event	-	never
stored	true when this capture stored the event	-	never
queued	true when some of its handlers run on the queue	-	never
properties	the event's properties as stored, masked like request input	-	empty list when it has none
handlers	each projector and reactor that handled it, in the order they ran: handler (class), type (projector or reactor), mode (sync, or queued when it ran from the queue job), status (ok or failed), duration and exception	-	empty list when nothing handled it in this capture
duration	the time of its handlers together	ms	null when nothing handled it in this capture
time	when the event was first seen	ms since the capture started	never
origin	the line in your code that stored or handled it	-	never

Each handled event is a span of kind event_sourcing on the Timeline, named after the event, with a span of kind event_sourcing.handler per projector and reactor under it. The queries and calls a projector made sit under its span.

Aggregate roots

Field	Meaning	Unit	Missing when
action	retrieved when the aggregate root was rebuilt from its events, persisted when it stored the events it recorded	-	never
aggregate	the aggregate root class	-	never
uuid	its uuid	-	never
events	how many events it was rebuilt from, or how many it stored	-	never
snapshot	true when it was rebuilt from a snapshot and only the events after it	-	never
time	when it started	ms since the capture started	never
duration	how long reading or storing the events took	ms	never

Totals, warnings and errors

When either section has rows, the summary gets:

Total	Label	Value
event_sourcing_ms	in handlers	the time of all projectors and reactors together, in ms
event_sourcing_stored	stored	the number of events this capture stored
event_sourcing_handled	handler calls	the number of times a projector or reactor ran
event_sourcing_aggregates	aggregates	the number of aggregate rows

Warning: one for each aggregate root rebuilt from at least snapshot_threshold events without a snapshot, reading "Aggregate class (uuid) was rebuilt from N events without a snapshot." Rebuilding reads every event the aggregate ever recorded; a snapshot of the aggregate cuts that down.

Error: one for each projector or reactor that failed, at most five, reading "Projector class failed handling event: message". With catch_exceptions off (the package's default) the exception also leaves the request, and the Exceptions lens has it too.

In the dashboard

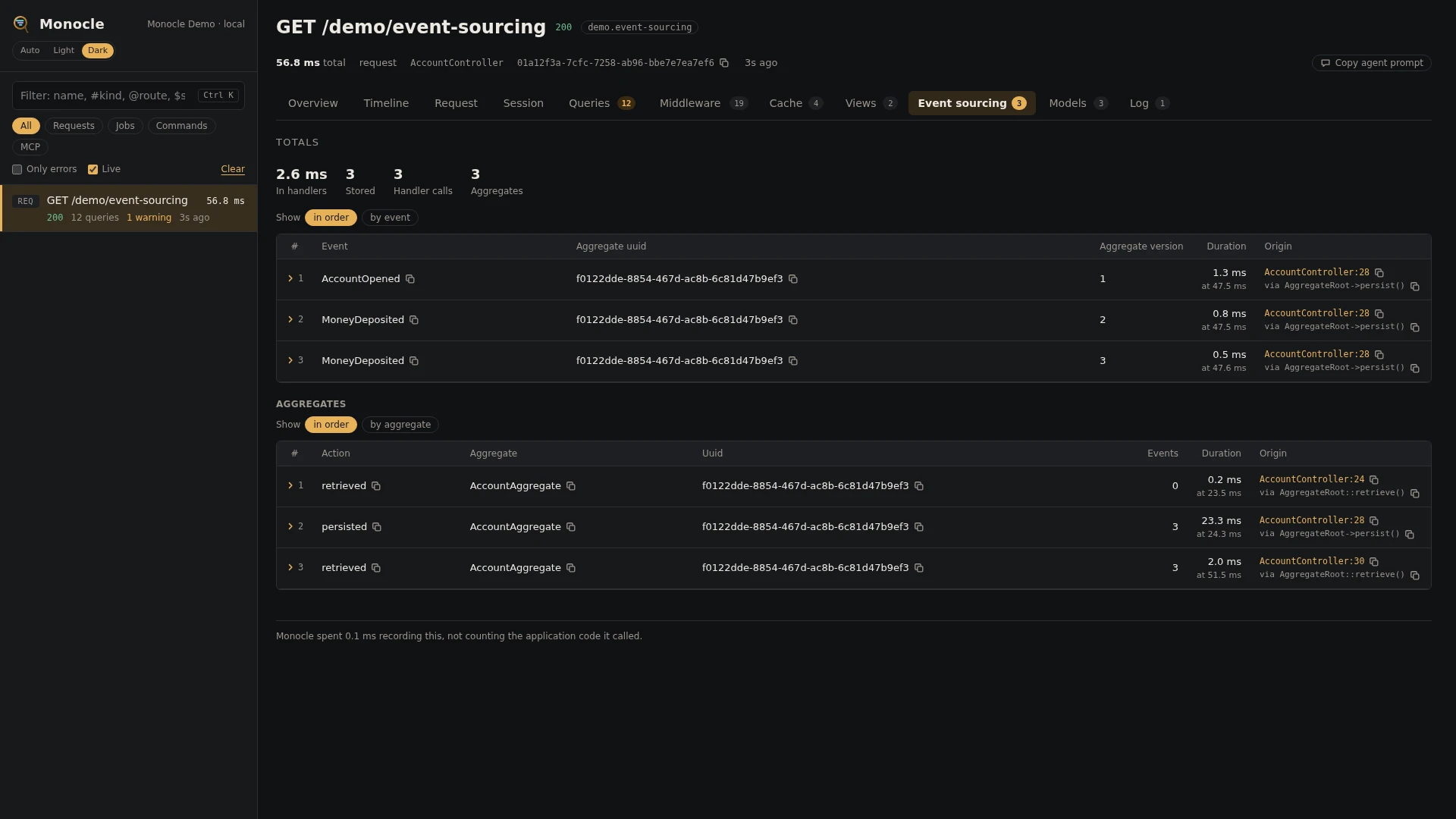

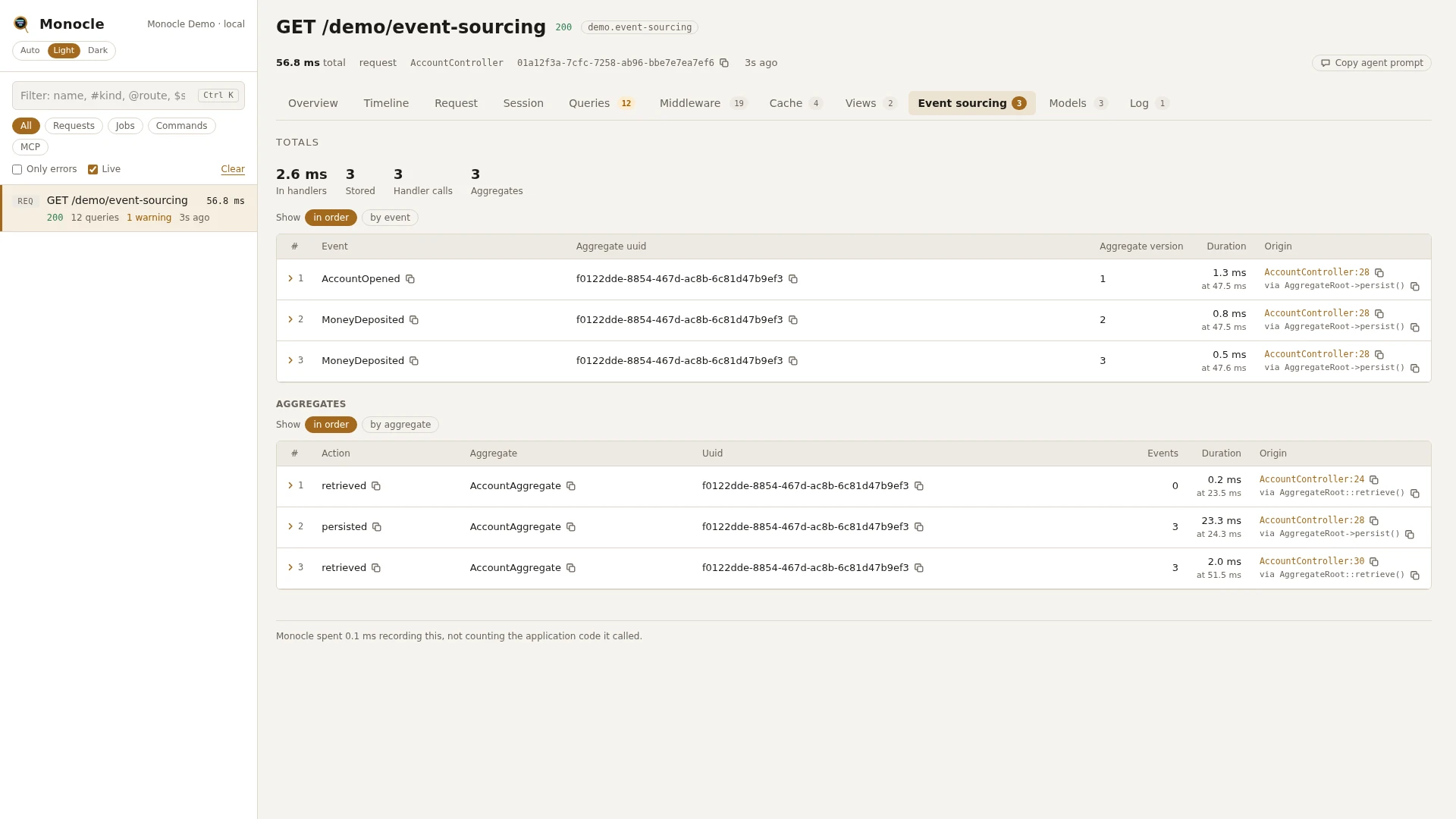

The Event sourcing tab shows the totals above a table of stored events: event, aggregate uuid, version, whether this capture stored it, whether it has queued handlers, and the handlers' time. Rows can be grouped by event. A row with a failed handler is reported on the tab as an error. Below it, the Aggregates table lists the aggregate roots retrieved and persisted, groupable by aggregate.

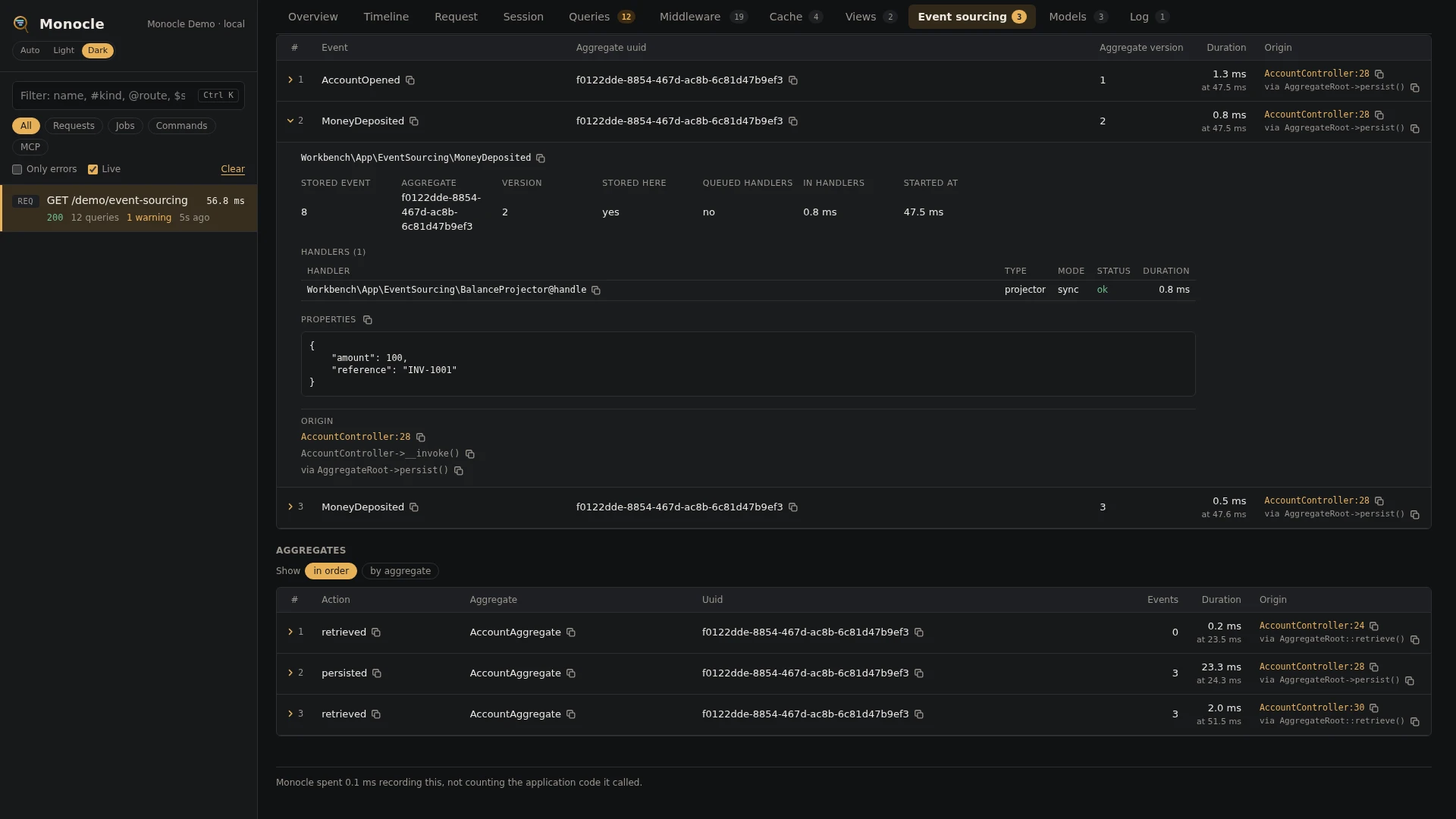

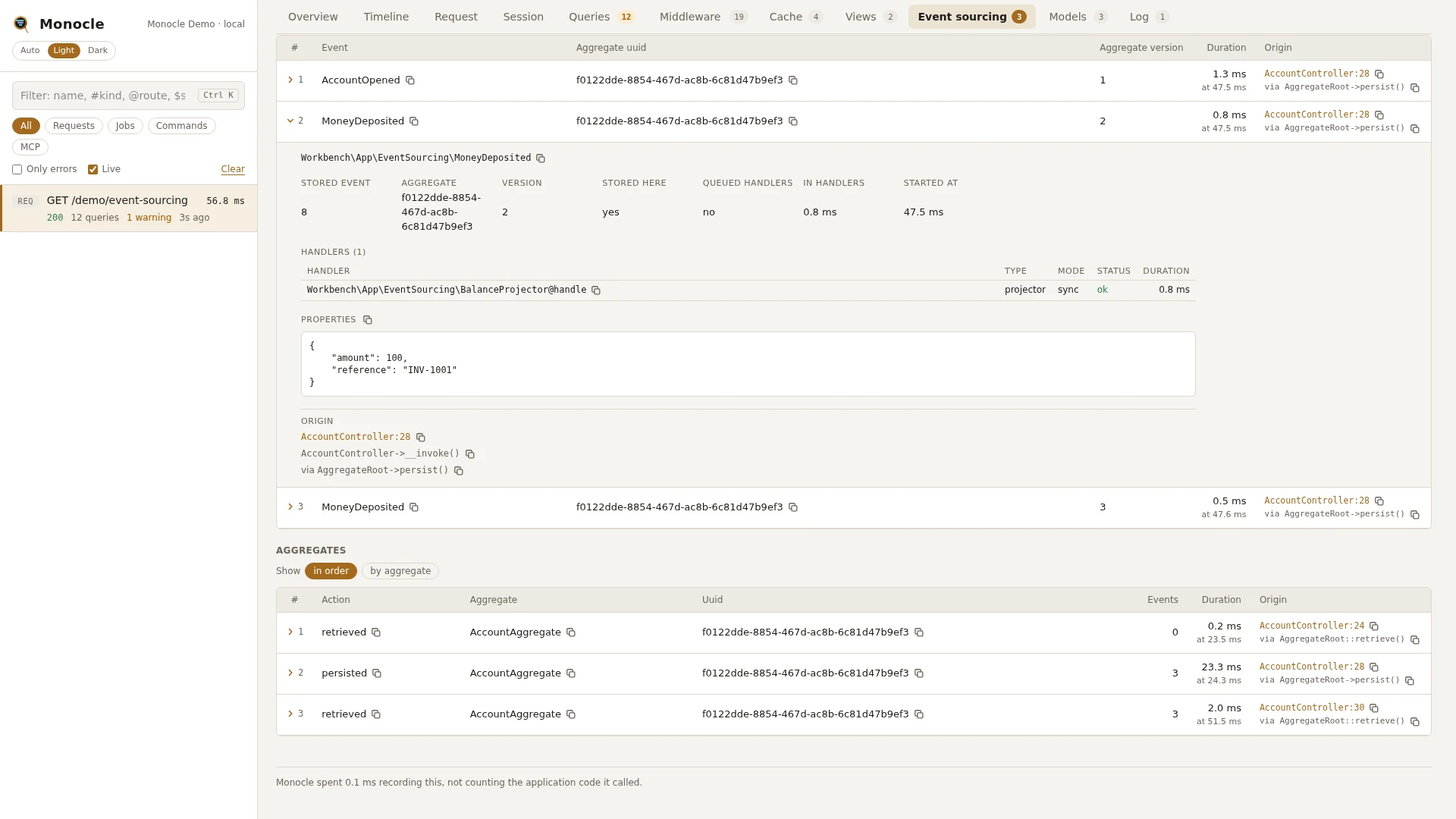

Each event folds out to its facts, a table of the handlers that ran - each linking to its class in your editor, with the exception of one that failed - and its properties.

The Timeline tab shows an event_sourcing span per handled event, with its handlers under it.

For agents

Which events did the latest request store, and which handlers ran?

{ "tool": "monocle-show", "id": "latest", "sections": ["summary", "event_sourcing", "aggregates"] }

Projectors and reactors that failed:

{
  "tool": "monocle-rows",
  "section": "event_sourcing",
  "search": "failed",
  "fields": ["event", "aggregate_uuid", "handlers"]
}

Where the time of a slow projector went:

{ "tool": "monocle-show", "id": "latest", "sections": ["timeline"], "kinds": ["event_sourcing", "event_sourcing.handler", "query"] }

To find captures that stored events, use monocle-list with "has": ["event_sourcing"]. See For AI agents for every filter monocle-rows accepts.

Configuration

The lens is listed in the lenses block of config/monocle.php under its class, ExeQue\Monocle\Lenses\Packages\Spatie\EventSourcing\EventSourcingLens. true runs it with its defaults, false turns it off, and an array sets its options. See Lenses.

Option	Default	Effect
snapshot_threshold	100	warn when an aggregate root is rebuilt from at least this many events without a snapshot

use ExeQue\Monocle\Lenses\Packages\Spatie\EventSourcing\EventSourcingLens;

'lenses' => [
    EventSourcingLens::class => [
        'snapshot_threshold' => 250,
    ],
],

Other settings that affect it:

• Masking - mask.inputs masks the event properties by name. Entries keyed by EventSourcingLens::class apply to this lens only.
• dashboard.tabs - EventSourcingLens::class in the list places the Event sourcing tab.

How it hooks in

The package fires no events around its handlers, so the lens wraps two of its services:

• The projectionist, replaced by a subclass that times each projector and reactor it calls. While no capture is recording it hands every call to the package's own code unchanged.
• The stored event repository - the one configured under event-sourcing.stored_event_repository, and the StoredEventRepository binding - wrapped so it notes every event stored and counts the events an aggregate root is rebuilt from. Methods your own repository adds are passed on.

Requirements and limits

• Needs spatie/laravel-event-sourcing 7. Without it the lens does nothing.
• The lens follows the projectionist's own steps to time each handler (their weight, the projecting flag, catching exceptions). A future version of the package that changes those steps may need a matching Monocle release.
• Code that type-hints your concrete repository class and resolves it from the container gets the wrapper, which only implements StoredEventRepository. Resolve the interface instead, or turn the lens off.
• Replays (event-sourcing:replay) and the command bus are not recorded yet. A replay's queries still show in the command's capture.
• An aggregate root is named from the call stack; a repository read from anywhere else (your own query on stored events) gets no aggregate row.
