Modules ​

A module shape draws each dark module of the code. Use one by its name, its Module enum case, its class or an instance with options:

php
use ExeQue\Qr\Shapes\Enums\Module;
use ExeQue\Qr\Shapes\Modules\Dot;

Qr::url($url)->modules('dots-medium');
Qr::url($url)->modules(Module::DotsMedium);
Qr::url($url)->modules(Module::DotsMedium, diameter: 0.7);   // a preset with an option changed
Qr::url($url)->modules(new Dot(diameter: 0.7));

Every built-in shape scans, as SVG and as PNG; the test suite checks it with a real decoder.

Square ​

squaresquare · Modules\Square
The whole cell. The classic look, and the smallest SVG.

Dots ​

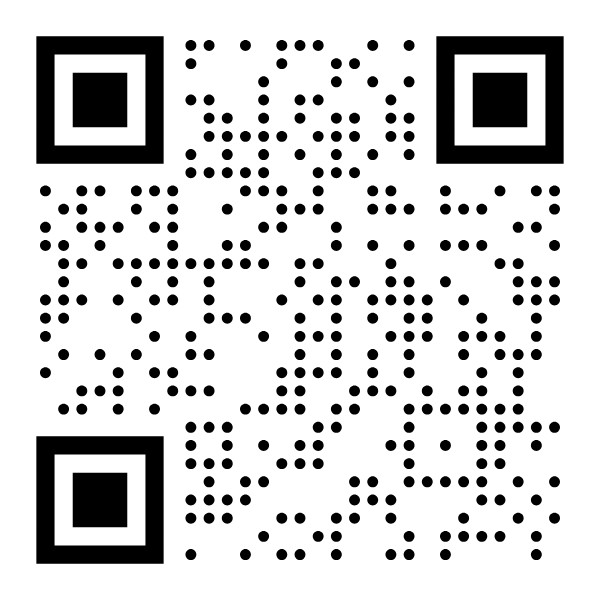

dots-smalldots-mediumdots-large
dots-smalldots-mediumdots-large

Modules\Dot · option diameter, 0.1 to 1 modules (0.6, 0.8 and 1.0 in the presets).

Flowing ​

Neighboring modules melt into each other: a run of modules is one bar with straight sides, outer corners are rounded, and inner elbows get a fillet so the code looks poured rather than cut. A module on its own becomes a circle at the strongest setting; modules touching only at a corner stay apart.

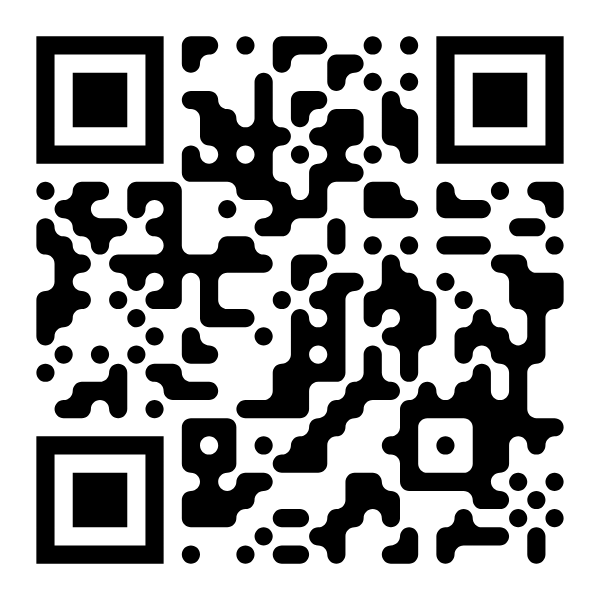

flowing-softflowing-mediumflowing-strong
flowing-softflowing-mediumflowing-strong

Modules\Flowing · options:

OptionDefault
radius0.35the rounding, 0 (square) to 0.5 (round); 0.2, 0.35 and 0.5 in the presets
concavetruefillet the inside of elbows; false rounds the outer corners only
php
Qr::url($url)->modules('flowing-medium', radius: 0.42, concave: false);

Flowing modules never join the eyes, and stop short of the area a logo clears.

Shapes ​

roundedsquirclesheartsdiamonds
roundedsquirclesheartsdiamonds
flowersstarssnowflakeshexagons
flowersstarssnowflakeshexagons
octagonsleavesdropssparkles
octagonsleavesdropssparkles
crossescloverspills-verticalbricks-horizontal
crossescloverspills-verticalbricks-horizontal
pills-horizontalbricks-verticalhexagons-standingsketch
pills-horizontalbricks-verticalhexagons-standingsketch
baublesghosts
baublesghosts
NameClassOptions

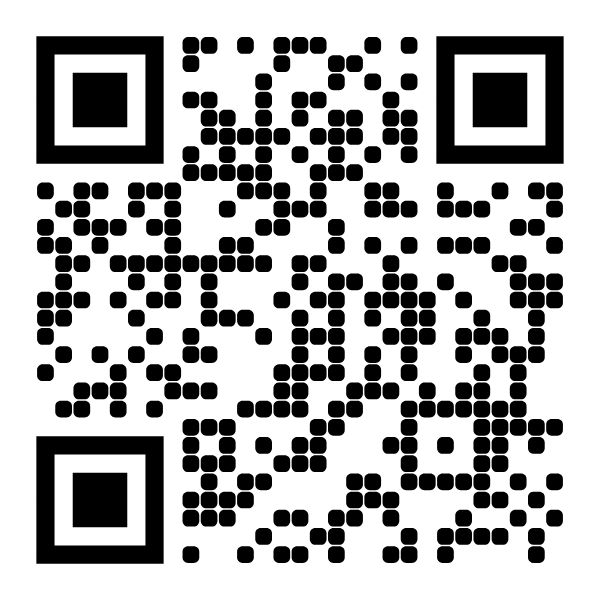

roundedModules\Roundedside 0.92 (0.1 to 1), radius 0.3 (0 to 0.5)

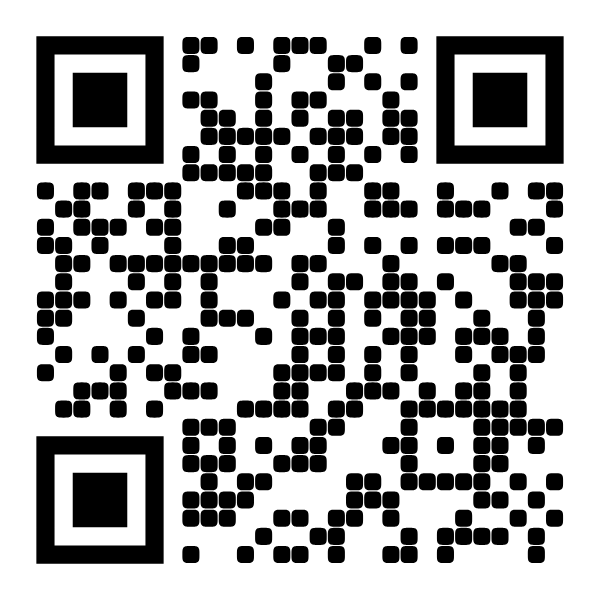

squirclesModules\Squircleside 0.94 (0.1 to 1): a square with soft, full sides

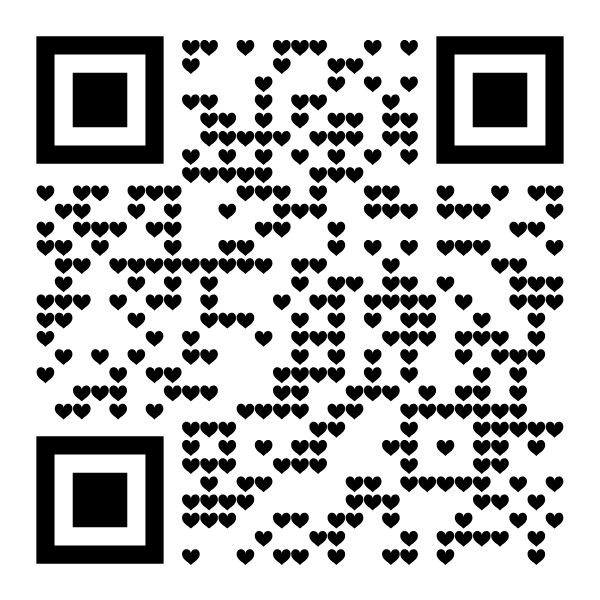

heartsModules\Heartheight 1.0 (0.1 to 1.2), its weight moved onto the middle of the cell
diamondsModules\Diamondradius 0.5, middle to corner (0.1 to 0.6)

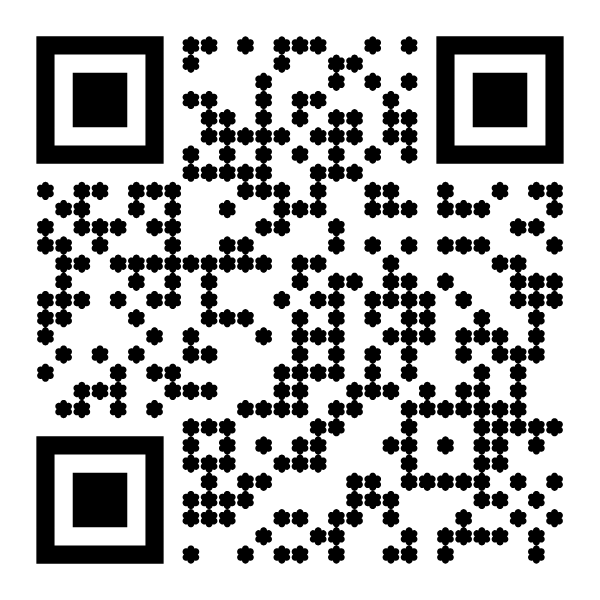

flowersModules\Flowerpetal 0.19, reach 0.31, heart 0.25, petals 6 (3 to 12)

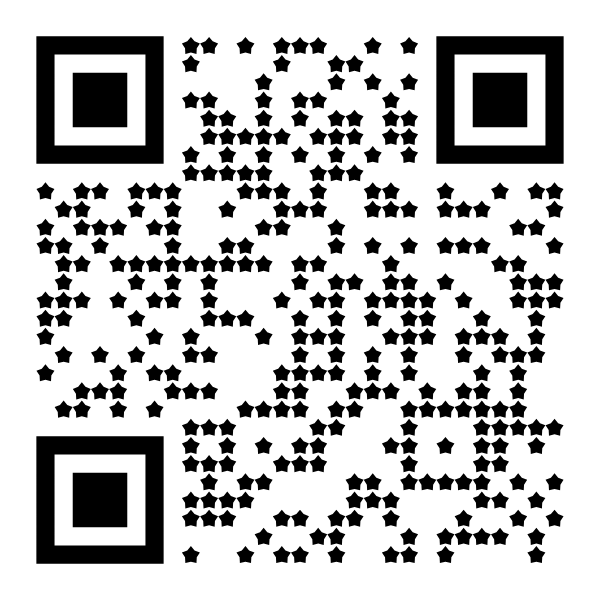

starsModules\Starouter 0.52, inner 0.34, points 5 (3 to 12)
snowflakesModules\Snowflakereach 0.52, width 0.26
hexagonsModules\Hexagonradius 0.5 (0.1 to 0.6), standing false: flat top and bottom, as the hexagon eyes
hexagons-standingModules\Hexagonthe same, standing true: a point up
octagonsModules\Octagonside 0.96 (0.1 to 1), a regular octagon
leavesModules\Leafside 0.94, point top-left (top-left, top-right or random), seed 0: two opposite corners fully round, the other two pointed
dropsModules\Dropside 0.94, point top-left, seed 0: three corners round, one pointed

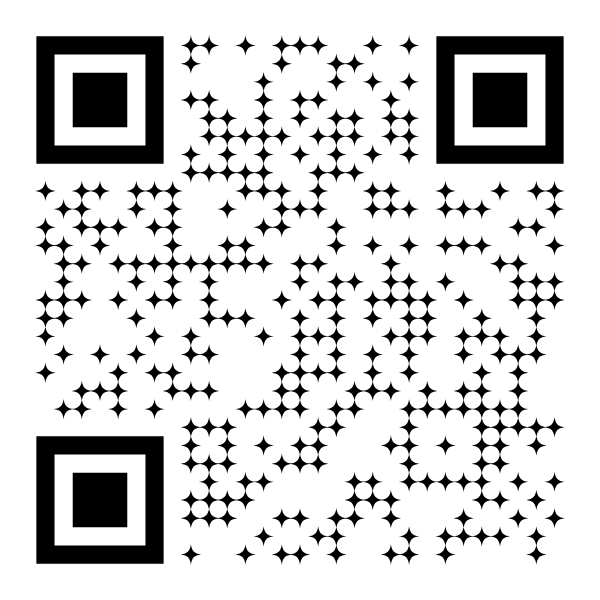

sparklesModules\Sparkleradius 0.56 (0.2 to 0.6), pinch 0.32 (0.1 to 1): a four-pointed sparkle
crossesModules\Crosswidth 0.4 (0.1 to 1): a plus
cloversModules\Clovera four-leaf clover

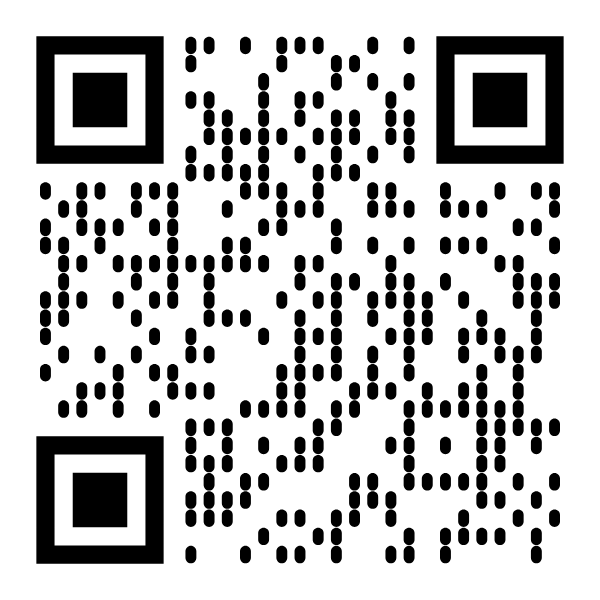

pills-verticalModules\Pillwidth 0.6 (0.2 to 1), vertical true: a pill standing up
pills-horizontalModules\Pillthe same, vertical false: a pill lying down
bricks-horizontalModules\Brickheight 0.76 (0.3 to 1), vertical false: rows read as courses of bricks
bricks-verticalModules\Brickthe same, vertical true: columns read as courses

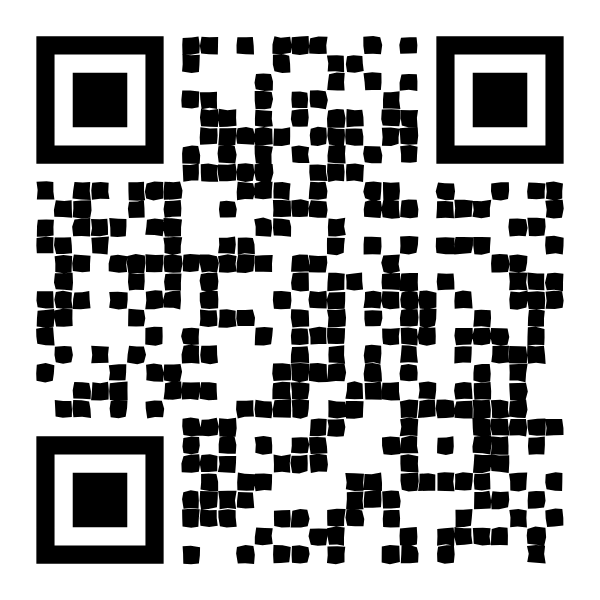

sketchModules\Sketchwobble 0.06 (0 to 0.1): a square drawn by hand, each its own way
baublesModules\Baublesdiameter 0.8 (0.5 to 0.86): a Christmas bauble with a cap
ghostsModules\Ghostsize 0.92 (0.6 to 1): a little ghost, its head round and its hem in scallops

point picks the pointed corner: a drop takes top-left, top-right, bottom-right or bottom-left, a leaf top-left or top-right (each pointing at the corner across from it too); either takes random for a corner picked for each module from its place, the same on every render. Another seed gives random other corners:

php
Qr::url($url)->modules('drops', point: 'random');
Qr::url($url)->modules('leaves', point: 'top-right');

Options outside their range throw an InvalidOptionException naming the option and the range.

Joined shapes ​

These look at their neighbors, like flowing modules, each in its own way.

lines-verticallines-horizontalconnected-dotsclassy
lines-verticallines-horizontalconnected-dotsclassy
bubblesorganicgarland
bubblesorganicgarland
NameClassOptions

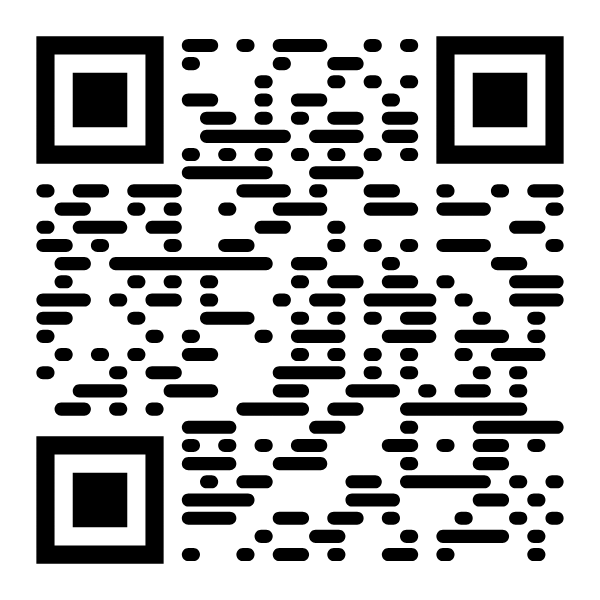

lines-vertical, lines-horizontalModules\Linesvertical true or false, width 0.72 (0.2 to 1): modules joined one way only, into lines with round ends

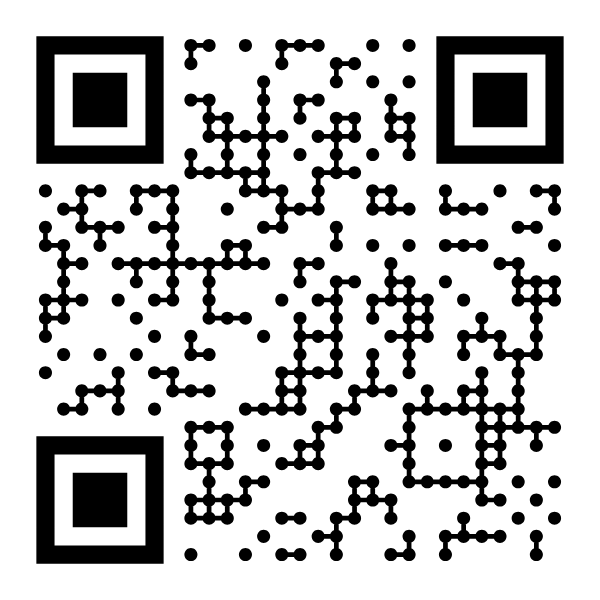

connected-dotsModules\ConnectedDotsdiameter 0.72 (0.3 to 1), bridge 0.26: dots joined to their neighbors by narrow bridges
classyModules\Classyradius 0.5 (0 to 0.5): each group's outer top-left and bottom-right corners rounded

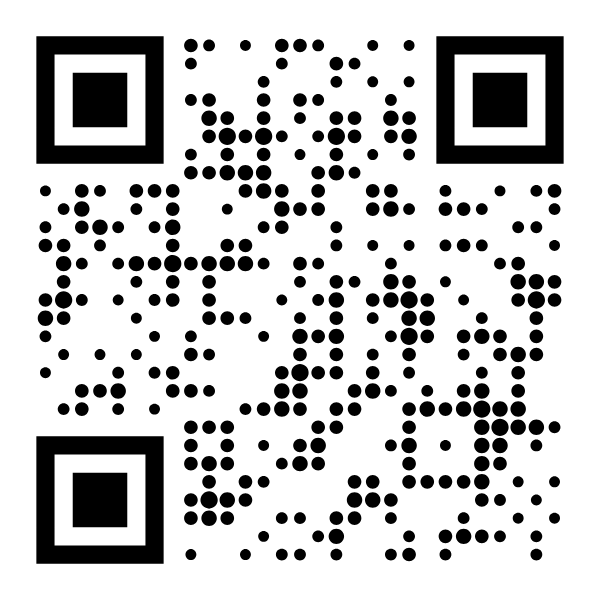

bubblesModules\Bubblessmallest 0.55, largest 0.95: a dot that grows with the number of neighbors
organicModules\Organicleast 0.28, most 0.5: joined like flowing modules, each outer corner rounded by its own amount
garlandModules\Garlandbead 0.66 (0.4 to 0.9), droop 0.08 (up to 0.2): beads strung on a strand along rows and columns, a smaller bead between each two, hanging a little below the middle along a row and in the middle along a column; a module on its own is a bauble

Mixing shapes, and scattered looks ​

The mixed-shape filter gives each module a shape from a list, and the other filters turn, size and color modules one by one. Confetti, for instance, is small squares turned every way:

php
Qr::url($url)
    ->modules('rounded', side: 0.8, radius: 0)
    ->filter('mixed-rotation', min: -15, max: 15)
    ->filter('palette', colors: ['#be123c', '#7c3aed', '#0f766e', '#b45309']);

confetti

Shapes of your own ​

A module shape is a class implementing ExeQue\Qr\Shapes\Contracts\ModuleShape, which draws one module about its middle. See Extending.
