Eyes ​

The three finder patterns in the corners are how a scanner finds a code. Each eye is two parts: the outer eye, a ring seven modules across, and the inner eye, the 3×3 block in its middle. They are styled apart, or together as a preset.

php
use ExeQue\Qr\Shapes\Enums\Eye;
use ExeQue\Qr\Shapes\Enums\InnerEye;
use ExeQue\Qr\Shapes\Enums\OuterEye;

Qr::url($url)->eyes(Eye::Heart);                               // a preset
Qr::url($url)->eyes(outer: OuterEye::Soft, inner: InnerEye::Circle);
Qr::url($url)->outer('octagon')->inner('star');
Qr::url($url)->outer(OuterEye::Octagon, cut: 1.5);             // a preset with an option changed

The pictures show the top-left eye close up, with the modules beside it.

Outer eyes ​

squaresoft-squaresoftrounded
squaresoft-squaresoftrounded
circleround-cornersoft-round-cornersquircle
circleround-cornersoft-round-cornersquircle
octagonhexagonleafdrop
octagonhexagonleafdrop
scallopeddotted-ringhexagon-standingghost
scallopeddotted-ringhexagon-standingghost
NameClassOptions
squareOuterEyes\Square—the standard ring
soft-squareOuterEyes\Roundedouter 0.6, hole 0.3
softOuterEyes\Roundedouter 1.9, hole 0.9
roundedOuterEyes\Roundedouter 2.7, hole 1.7
circleOuterEyes\Roundedouter 3.5, hole 2.5a round ring

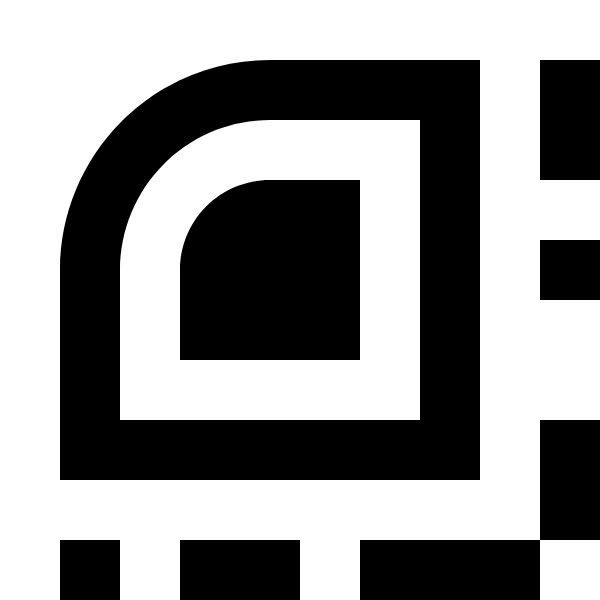

round-cornerOuterEyes\Roundedouter [0, 0, 0, 3.5], hole [0, 0, 0, 2.5]one round corner, three sharp
soft-round-cornerOuterEyes\Roundedouter [1.9, 1.9, 1.9, 3.5], hole [0.9, 0.9, 0.9, 2.5]one round corner, three soft

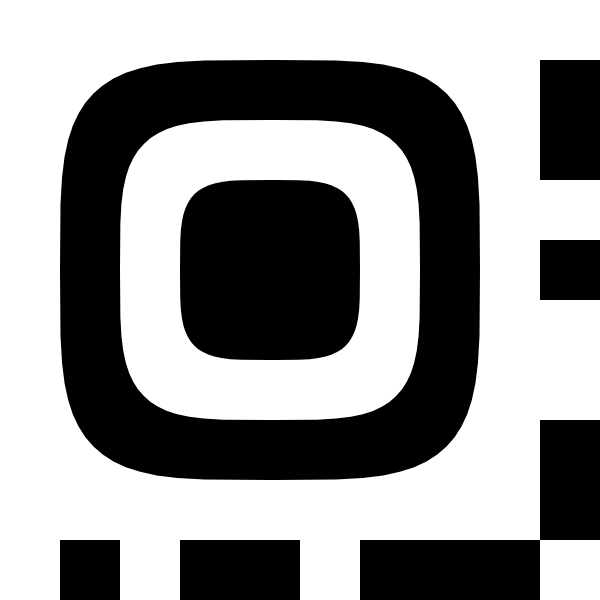

squircleOuterEyes\Squircle—a square with soft, full sides

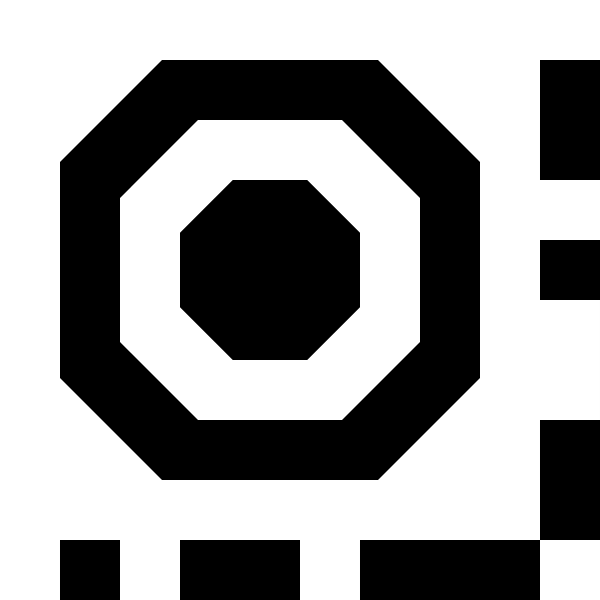

octagonOuterEyes\Octagoncut 1.7, holeCut 1.3corners cut off

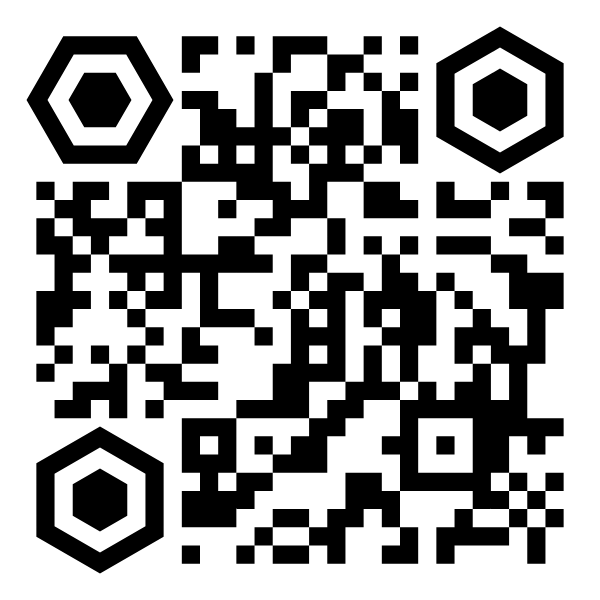

hexagonOuterEyes\Hexagonstanding falsea regular hexagon, flat top and bottom; its points reach into the light border around the eye
hexagon-standingOuterEyes\Hexagonstanding truethe same, flat sides left and right, points up and down

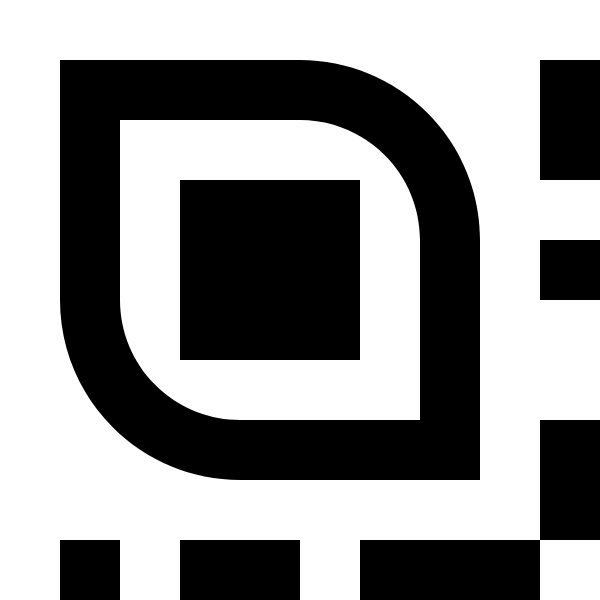

leafOuterEyes\Roundedouter [3, 0, 3, 0], hole [2, 0, 2, 0]two opposite corners round

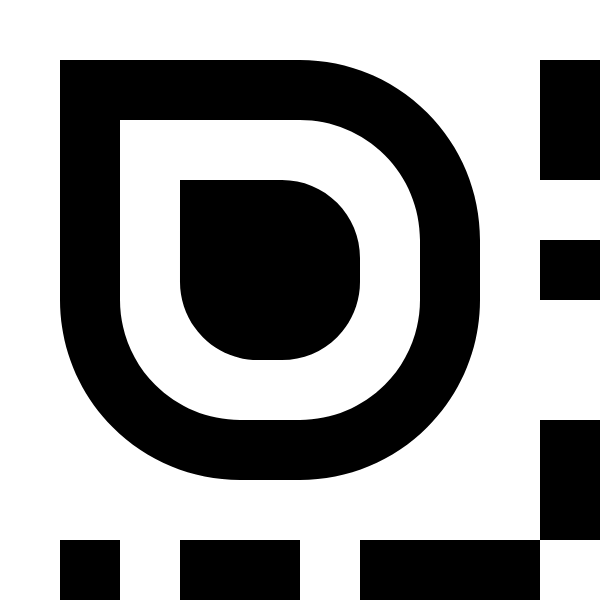

dropOuterEyes\Roundedouter [3, 3, 3, 0], hole [2, 2, 2, 0]three corners round, one pointed
scallopedOuterEyes\Scallopeddepth 0.15 (up to 0.25), bumps 4 (2 to 8)scalloped sides around a soft hole

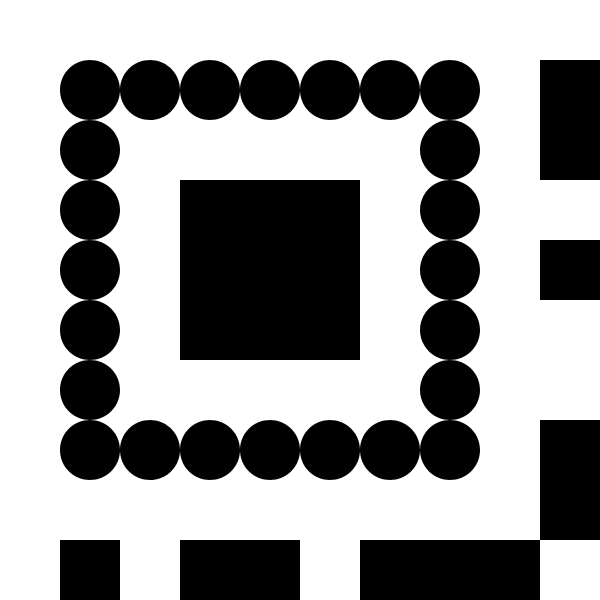

dotted-ringOuterEyes\DottedRingdiameter 1.0 (0.8 to 1)a dot on each of the ring's 24 modules
ghostOuterEyes\Ghost—a ghost's outline: a round head, straight sides and a scalloped hem, upright on every corner

OuterEyes\Rounded takes one radius for every corner, or four: top-right, bottom-right, bottom-left, top-left. Its hole must stay rounded enough that it does not poke through the ring; a radius pair that would is refused.

Inner eyes ​

Shown inside the square outer eye.

squaresoft-squaresoftcircle
squaresoft-squaresoftcircle
round-cornersoft-round-cornersquircleheart
round-cornersoft-round-cornersquircleheart
starflowerdiamondhexagon
starflowerdiamondhexagon
octagonleafdropsparkle
octagonleafdropsparkle
clovercrosspillblob
clovercrosspillblob
hexagon-standingchristmas-treeghostpumpkin
hexagon-standingchristmas-treeghostpumpkin
NameClassOptions
squareInnerEyes\Square—
soft-squareInnerEyes\Roundedradius 0.5
softInnerEyes\Roundedradius 0.7
circleInnerEyes\Roundedradius 1.5
round-cornerInnerEyes\Roundedradius [0, 0, 0, 1.5]
soft-round-cornerInnerEyes\Roundedradius [0.7, 0.7, 0.7, 1.5]
squircleInnerEyes\Squircle—

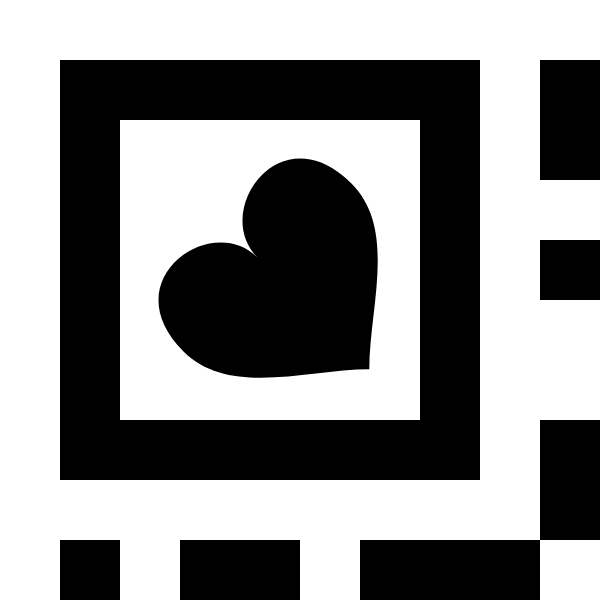

heartInnerEyes\Heart—

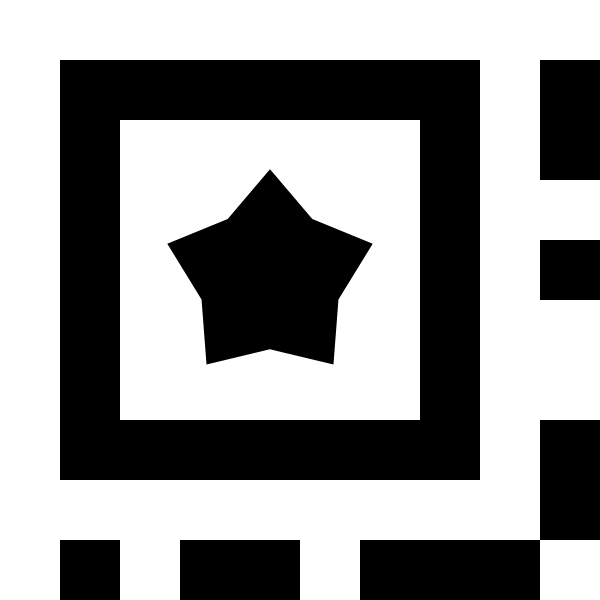

starInnerEyes\Star—
flowerInnerEyes\Flower—
diamondInnerEyes\Diamond—
hexagonInnerEyes\Hexagonstanding false: flat top and bottom
hexagon-standingInnerEyes\Hexagonstanding true: points up and down
octagonInnerEyes\Octagoncut 0.88

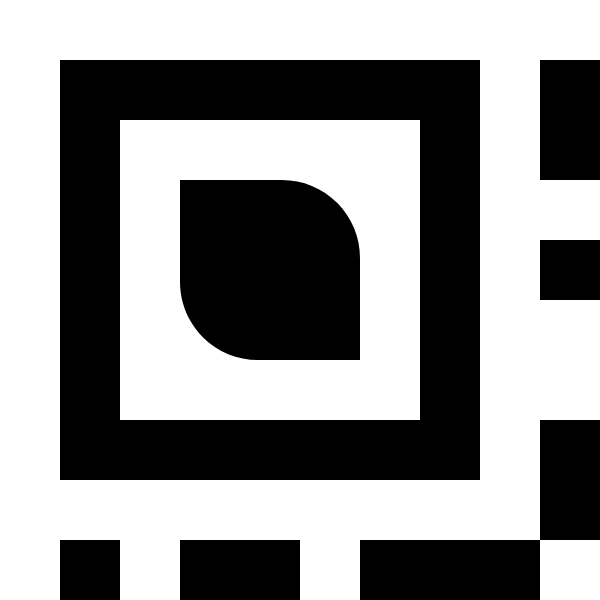

leafInnerEyes\Roundedradius [1.3, 0, 1.3, 0]
dropInnerEyes\Roundedradius [1.3, 1.3, 1.3, 0]
sparkleInnerEyes\Sparkle— a full four-pointed sparkle
cloverInnerEyes\Clover—
crossInnerEyes\Cross— a plus with broad bars

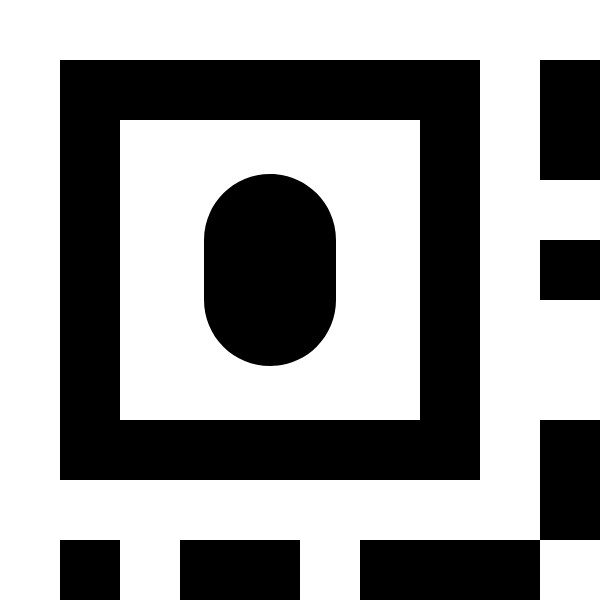

pillInnerEyes\Pillvertical true: standing up, or lying down

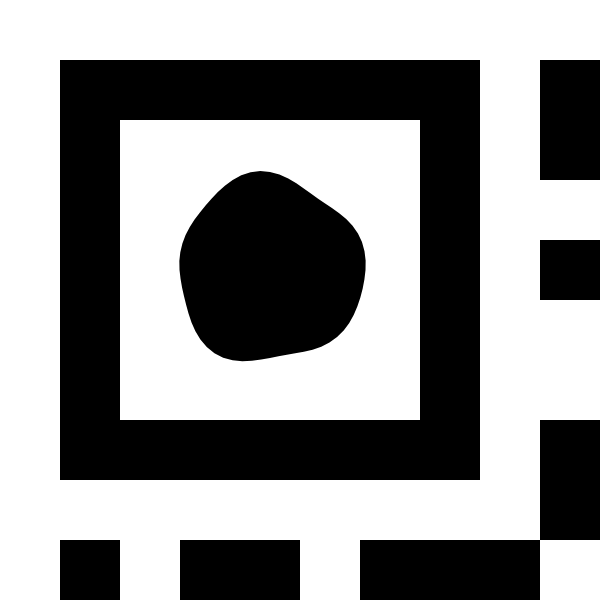

blobInnerEyes\Blobamount 0.08 (up to 0.15), seed 1
christmas-treeInnerEyes\ChristmasTree— a fir of three tiers on a trunk, upright on every corner
ghostInnerEyes\Ghost— a ghost, upright on every corner
pumpkinInnerEyes\Pumpkin— a pumpkin of three lobes under a stem, upright on every corner

The star, diamond, hexagon, sparkle, cross and pill reach a little past the 3×3 box where they are narrow, so a line across the middle still measures about three modules.

Presets ​

squareroundround-cornersoft-square
squareroundround-cornersoft-square
dotroundedmixheart
dotroundedmixheart
soft-round-cornersquirclehexagonoctagon
soft-round-cornersquirclehexagonoctagon
leafdropsparklescalloped
leafdropsparklescalloped
organichexagon-standingchristmas-treeghost
organichexagon-standingchristmas-treeghost
pumpkin
pumpkin
PresetOuterInner
squaresquaresquare

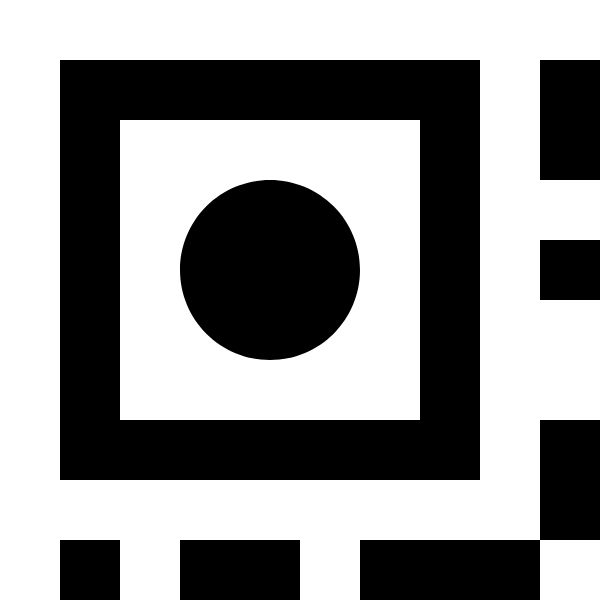

roundsquarecircle
round-cornerround-cornerround-corner

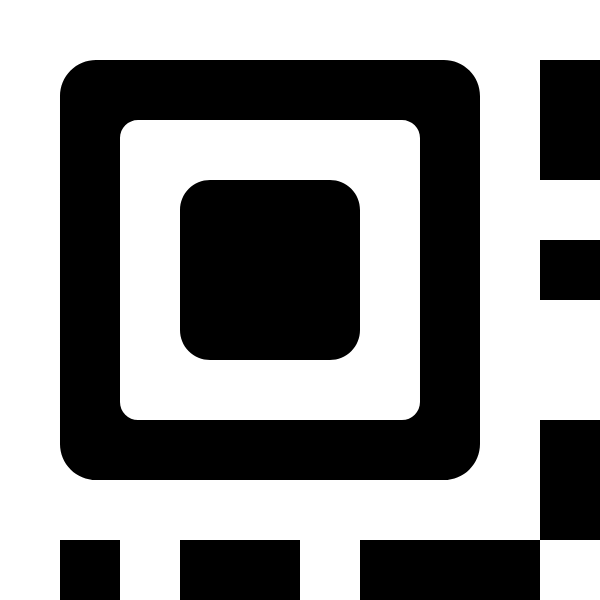

soft-squaresoft-squaresoft-square

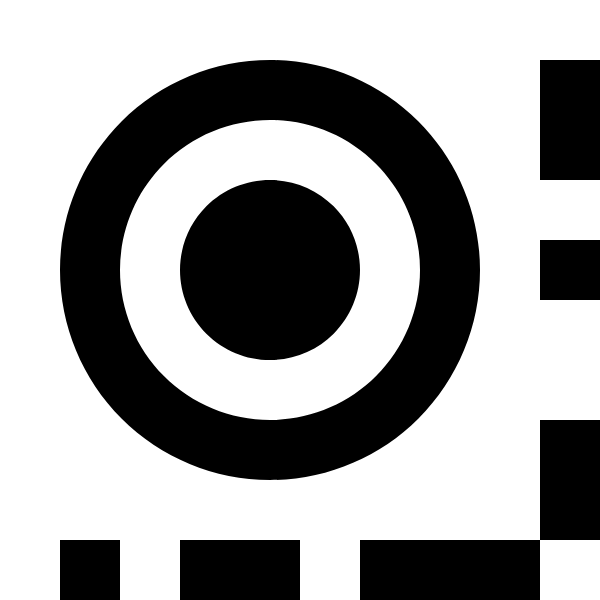

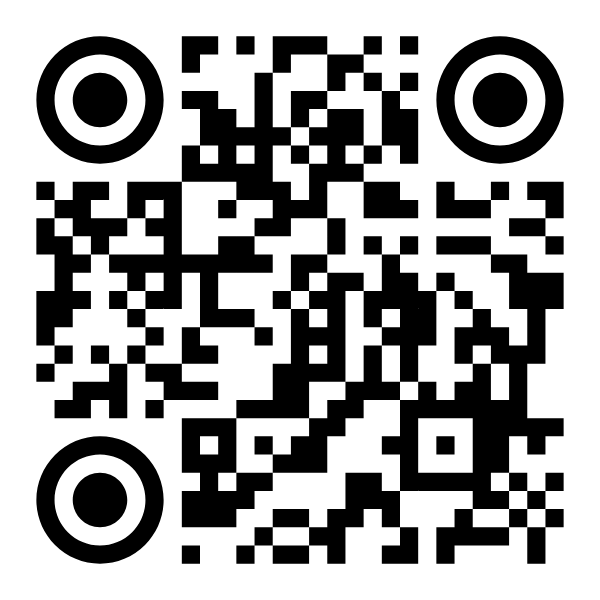

dotcirclecircle

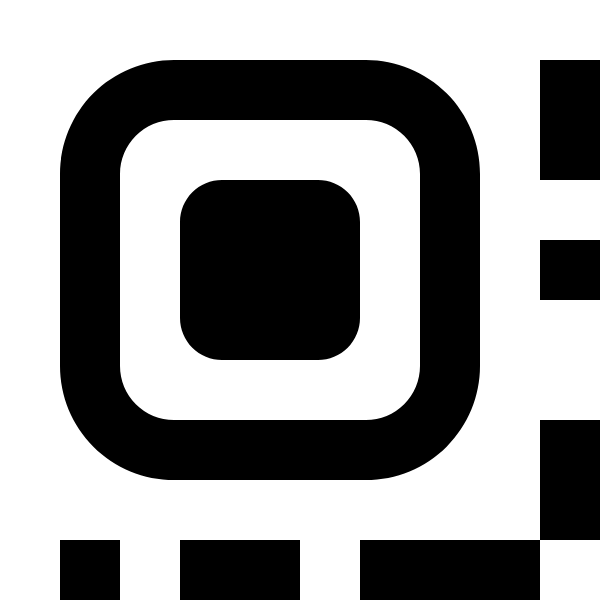

roundedsoftsoft
mixroundedsoft
heartsoft-round-cornerheart
soft-round-cornersoft-round-cornersoft-round-corner
squirclesquirclesquircle

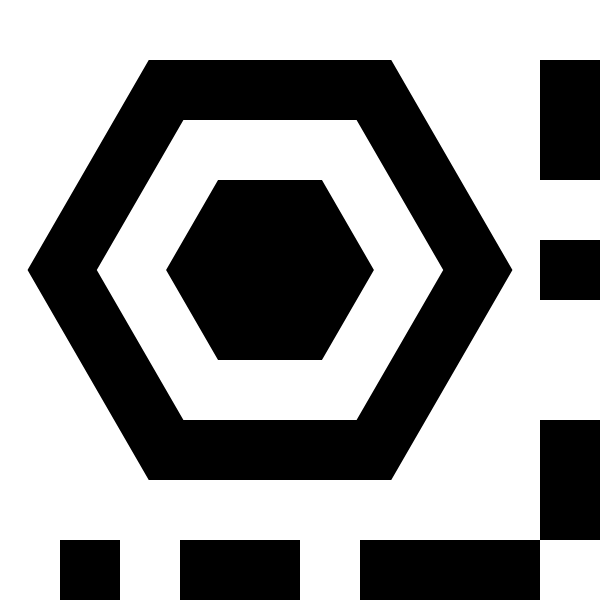

hexagonhexagonhexagon
hexagon-standinghexagon-standinghexagon-standing

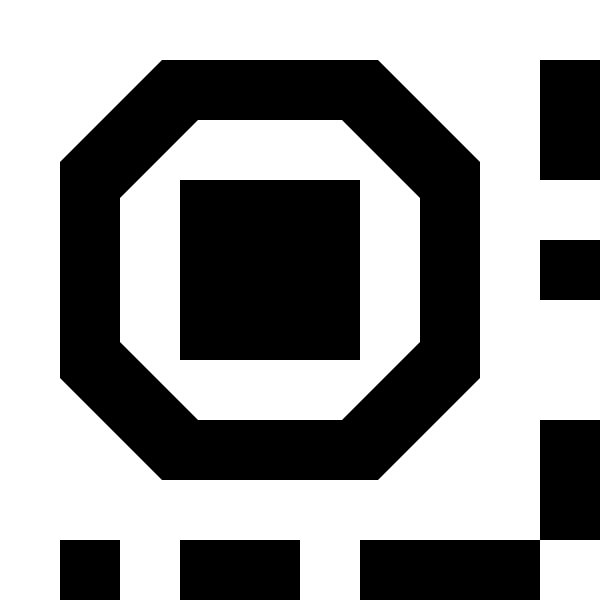

octagonoctagonoctagon
leafleafleaf

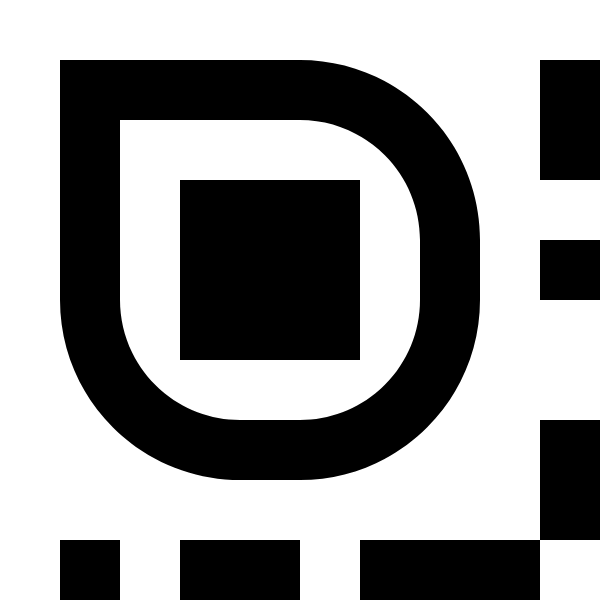

dropdropdrop
sparklesoftsparkle

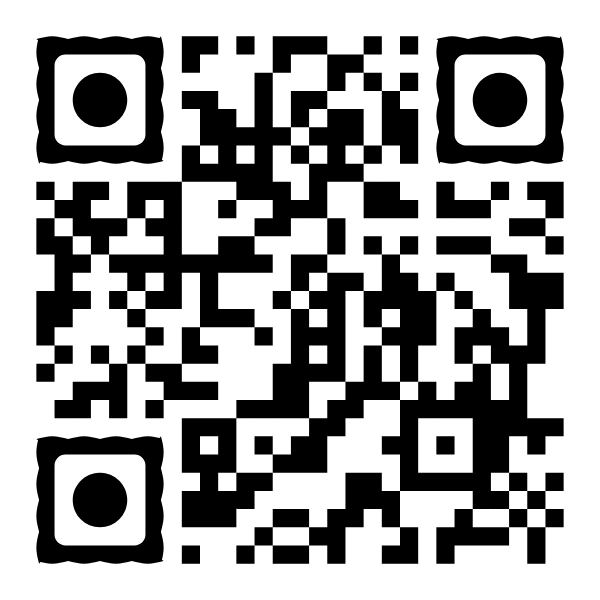

scallopedscallopedcircle

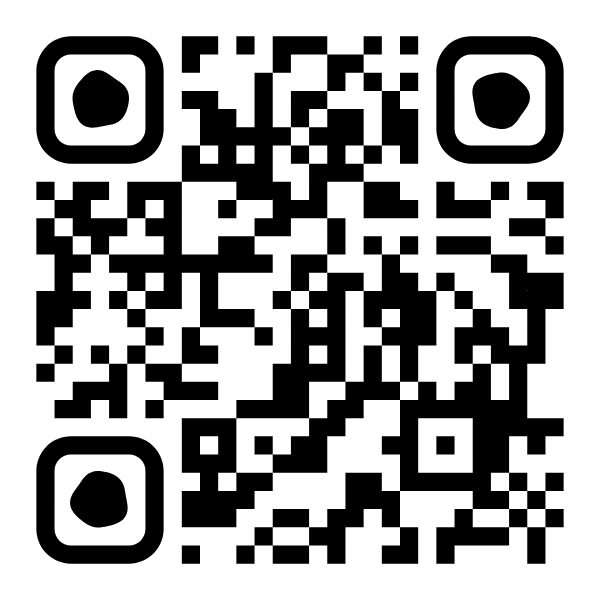

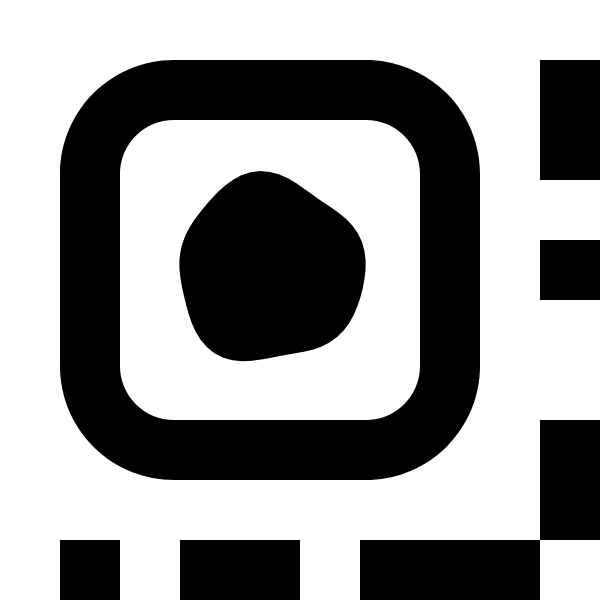

organicsoftblob
christmas-treesoftchristmas-tree
ghostghostghost
pumpkincirclepumpkin

Eye cases are also ProvidesQrEye, as is anything of your own that gives an outer and an inner eye.

Turned to point out ​

Eye parts whose corners differ - round-corner, soft-round-corner, drop, leaf, heart, and rounded shapes of your own with uneven corners - turn by themselves on each corner, so their distinct corner points out of the code on all three eyes: the top-right a quarter clockwise, the bottom-left a quarter back.

Turned on each corner

mirrored() turns every other eye part the same way, for shapes of your own that should point out too. Parts that look the same turned, and the christmas-tree, ghost and pumpkin, which should stand upright, implement Shapes\Contracts\Symmetric and are left as they are:

php
Qr::url($url)->eyes('my-arrow')->mirrored();

A shape of your own turns by itself when it implements Shapes\Contracts\Directional and says it is.

One corner at a time ​

php
use ExeQue\Qr\Rendering\Enums\Corner;

Qr::url($url)
    ->eyes(Eye::Rounded)
    ->eye(Corner::TopLeft, Eye::Heart, paint: '#be123c')
    ->eye(Corner::BottomLeft, rotation: 90);

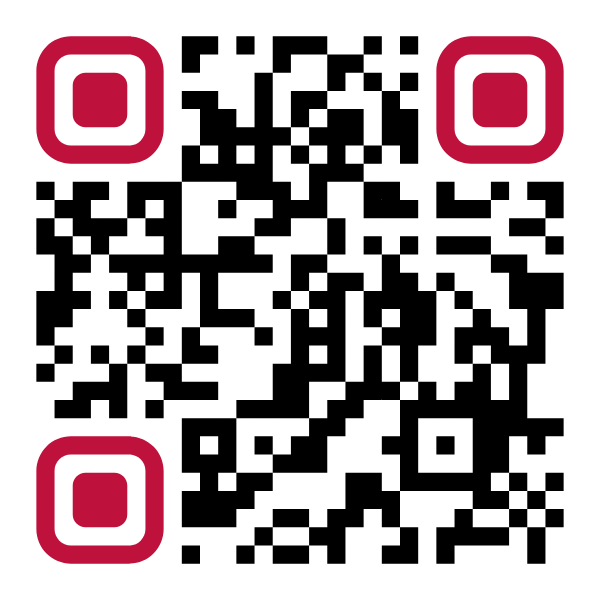

Eyes in their own color

The eye-tilt, eye-size and eye-paint filters change eyes too. The scan guards keep an outer eye about seven modules wide, and warn about turns that are not quarter turns, which distort the pattern scanners look for.

Every preset on a code ​

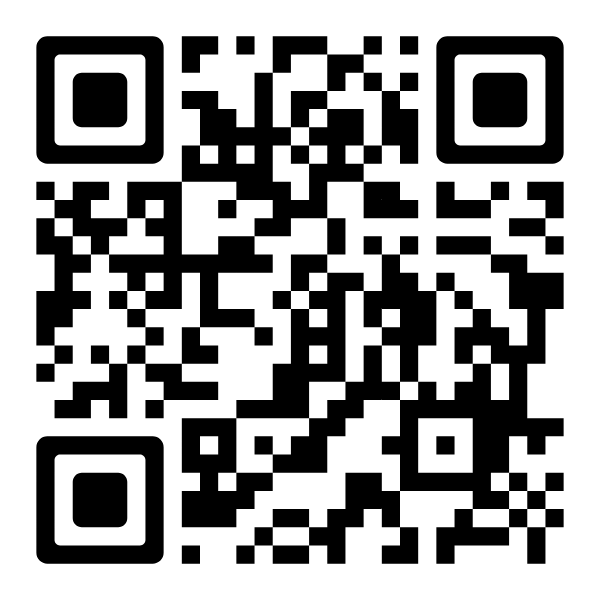

squareroundround-cornersoft-squaredotroundedmixheartsoft-round-cornersquirclehexagonoctagonleafdropsparklescallopedorganichexagon-standingchristmas-treeghostpumpkin

Eyes of your own ​

An outer eye implements ExeQue\Qr\Shapes\Contracts\OuterEyeShape, an inner eye InnerEyeShape. See Extending for the geometry they must keep to.
