Filters

Filters change modules and eyes one by one, as the code is drawn: each module its own turn, size, color or shape; each eye its own tilt. They run in the order they are added, each on the result of the last, and are seeded per cell, so a code looks the same every time it is drawn.

use ExeQue\Qr\Filters\Enums\Filter;
use ExeQue\Qr\Filters\MixedRotation;

Qr::url($url)->filter('mixed-rotation', min: -20, max: 20);   // by name, with options
Qr::url($url)->filter(Filter::MixedRotation);                  // by enum case
Qr::url($url)->filter(new MixedRotation(min: -20, max: 20));   // as an instance
Qr::url($url)->filters([new MixedRotation(), 'jitter']);       // several
Qr::url($url)->withoutFilter('jitter');                        // remove by name

Every filter here, on a real code; all of them scan.

Module filters

mixed-rotation

Turns each module by its own angle. MixedRotation(min: -20, max: 20, steps: null, seed: 0). With steps, each module takes one of the given angles, such as [0, 90, 180, 270], instead of any in the range.

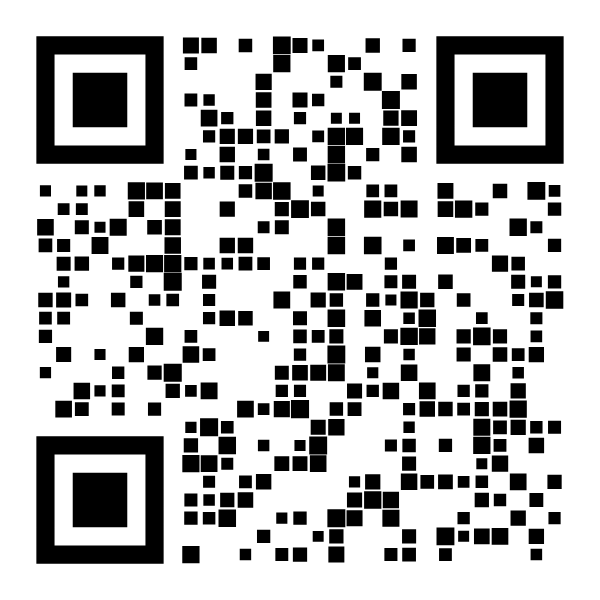

mixed-size

Scales each module by its own factor. MixedSize(min: 0.85, max: 1.0, seed: 0).

mixed-offset

Nudges each module from the middle of its cell. MixedOffset(max: 0.1, seed: 0), in modules each way.

mixed-skew

Skews each module. MixedSkew(x: 10, y: 0, seed: 0), the most each way, in degrees.

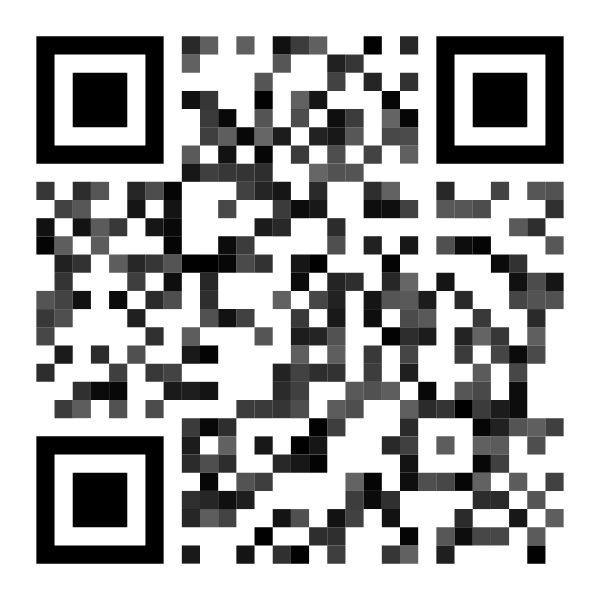

mixed-opacity

Fades each module by its own factor. MixedOpacity(min: 0.75, max: 1.0, seed: 0).

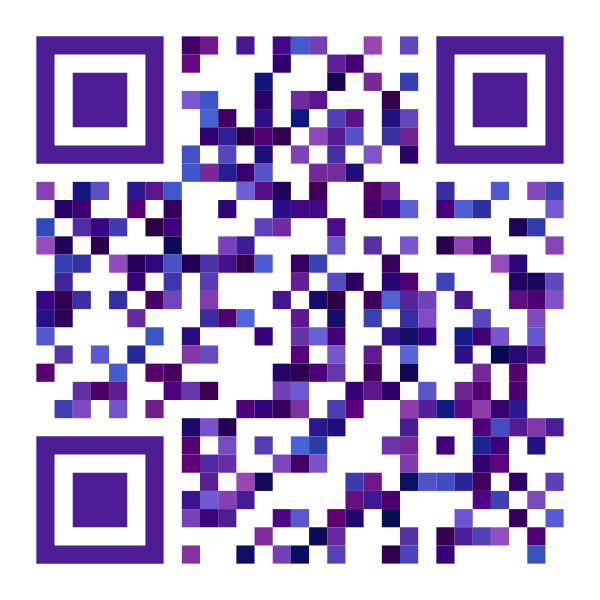

mixed-shade

Gives each module its own shade of its color: lighter or darker by up to a number of points of perceived lightness, and its hue turned by up to a number of degrees. MixedShade(min: -12, max: 12, hue: 0, seed: 0). Modules painted with a gradient keep it.

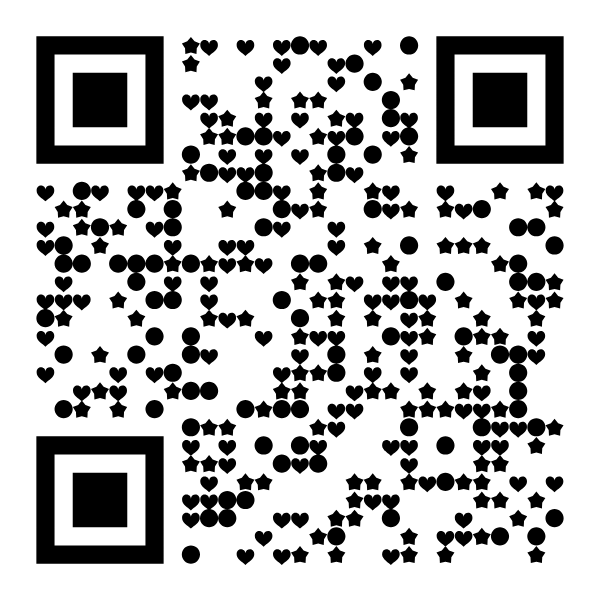

mixed-shape

Gives each module a shape from a list, optionally weighted. MixedShape(shapes: [...], weights: null, seed: 0); shapes by name, enum case, class or instance.

->filter(new MixedShape([Module::DotsLarge, Module::Hearts, 'stars'], weights: [3, 1, 1]))

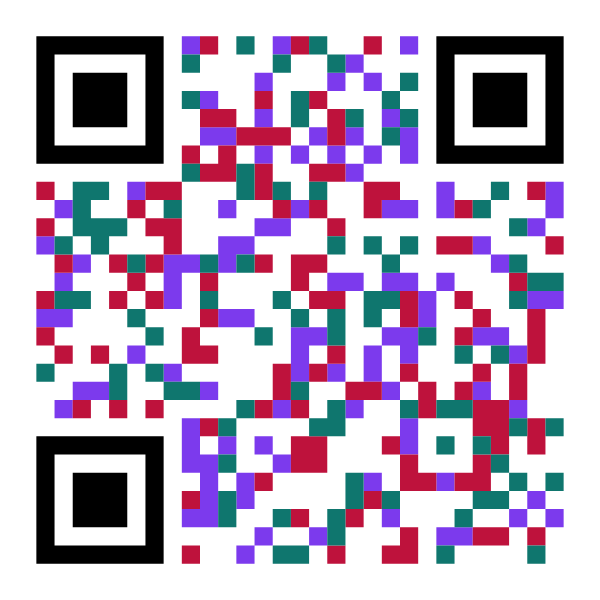

palette

Paints each module a color from a list, optionally weighted. Palette(colors: [...], weights: null, seed: 0).

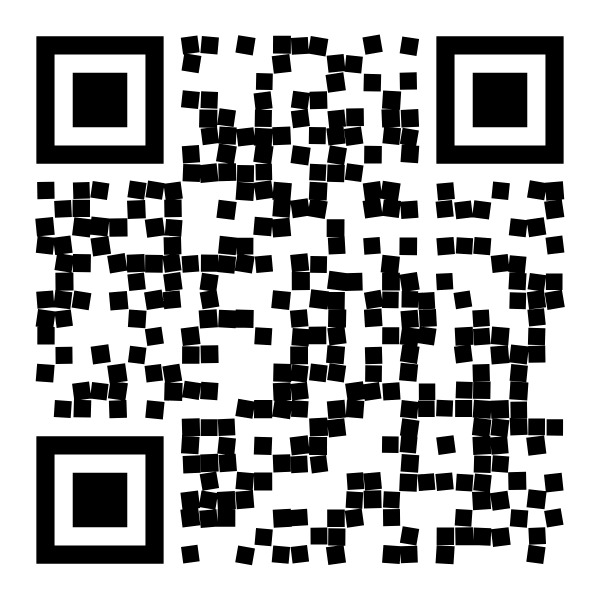

jitter

A little of everything: rotation, size and offset. Jitter(rotate: 10, size: 0.1, offset: 0.05, seed: 0).

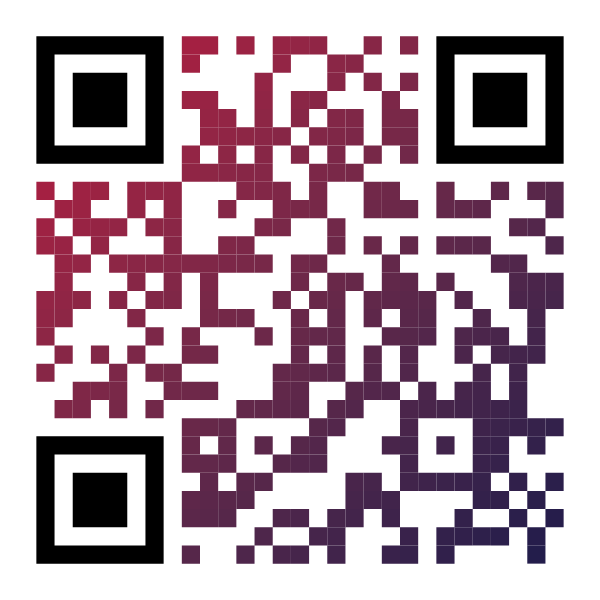

gradient-fill

Gives each module a single color: the one a gradient has at the module's middle, across the code. GradientFill(gradient).

A gradient set with ->paint() runs through the modules as one continuous paint, eyes included. gradient-fill colors module by module instead, so it can be limited to some roles or a region, leaves the eyes their own paint, and hands the filters after it plain colors to work on:

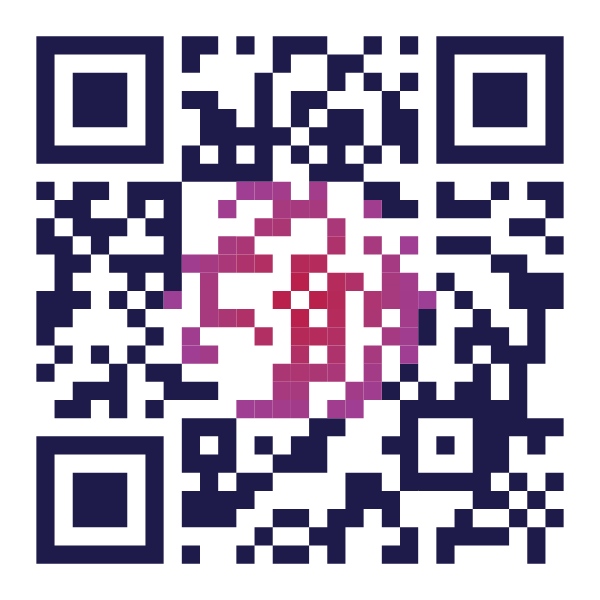

// A gradient in the middle of the code only
->paint('#1e1b4b')
->filter((new GradientFill(RadialGradient::make('#be123c', '#7c3aed')))->in(Region::circle(14.5, 14.5, 7)))

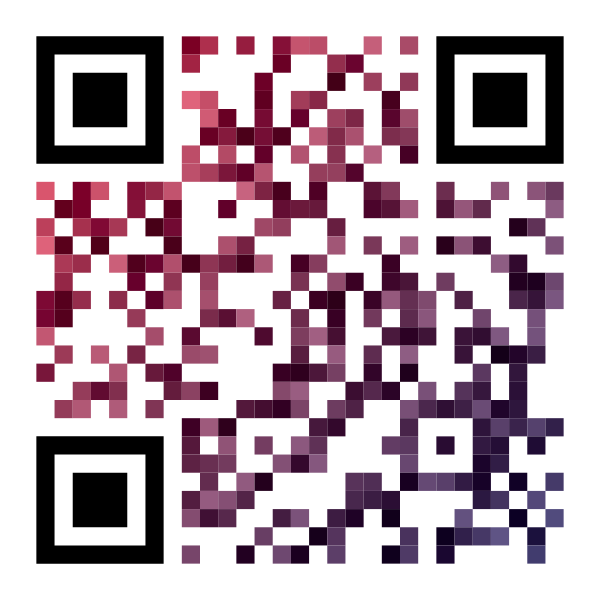

// Every module its own shade of the gradient
->filter(new GradientFill(LinearGradient::make('#be123c', '#1e1b4b')->angle(135)))
->filter(new MixedShade(min: -20, max: 20))

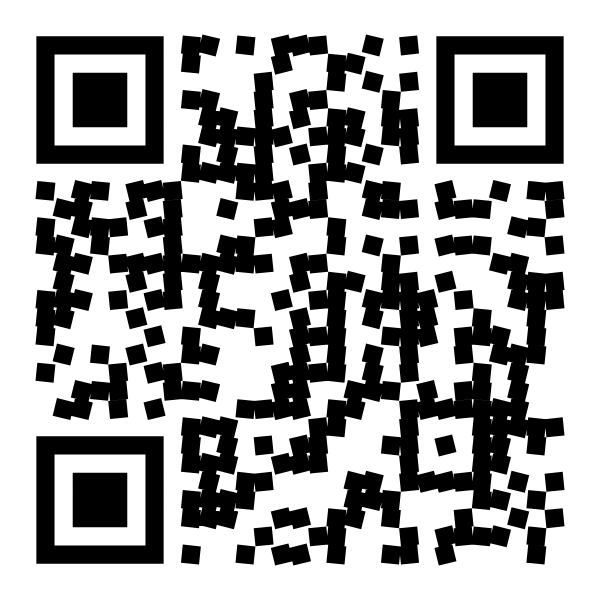

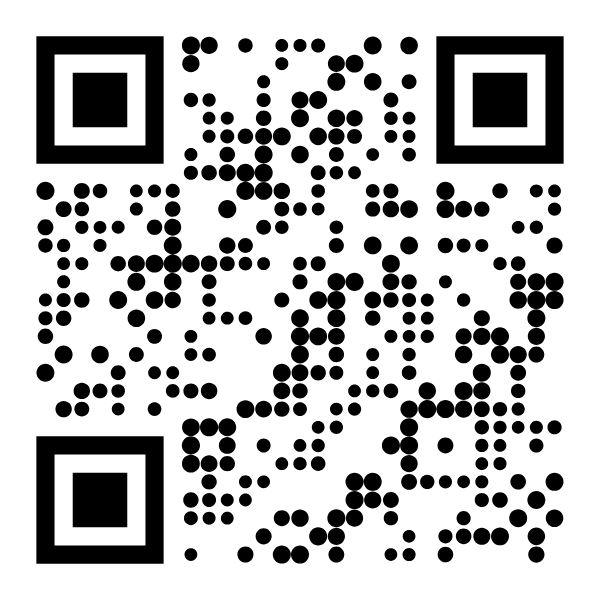

wave

Rotation, size or opacity rising and falling in waves across the code. Wave(property: 'rotation', amplitude: 15, wavelength: 8, angle: 0, phase: 0); the wavelength in modules, the angle the direction the waves travel (0 across, 90 down). The property is rotation (amplitude in degrees), size or opacity (amplitude as a share).

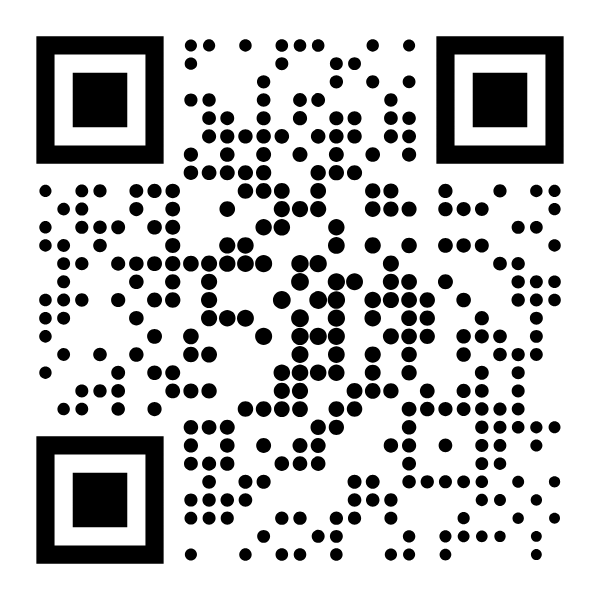

radial

Size or opacity changing from the middle outwards. Radial(property: 'size', inner: 1.0, outer: 0.8, center: [0.5, 0.5]); the values at the middle and at the corners, and the middle as a point of the code (0 to 1 both ways).

Eye filters

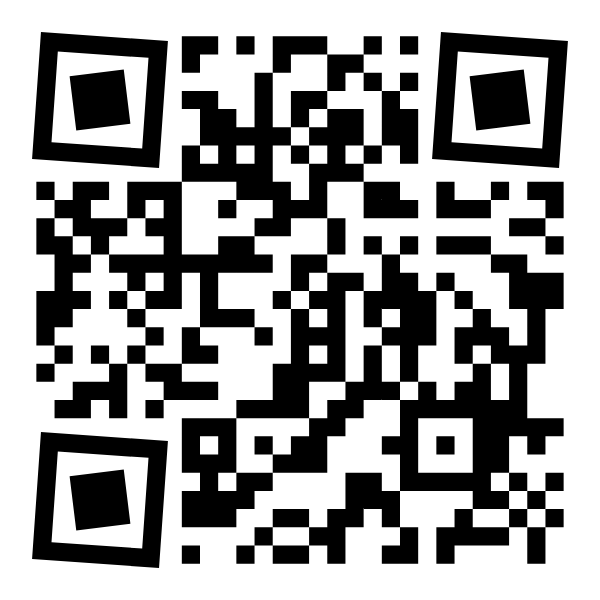

eye-tilt

Tilts the outer and inner eyes. EyeTilt(outer: 4, inner: -7, seed: 0), in degrees, or a range such as [-5, 5] to pick from per corner.

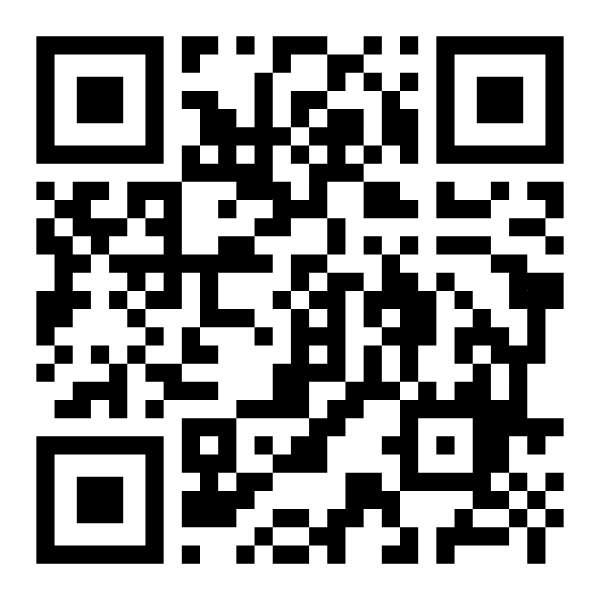

eye-size

Scales the inner eyes. EyeSize(inner: 0.85, seed: 0), or a range such as [0.6, 1.0] to pick from per corner.

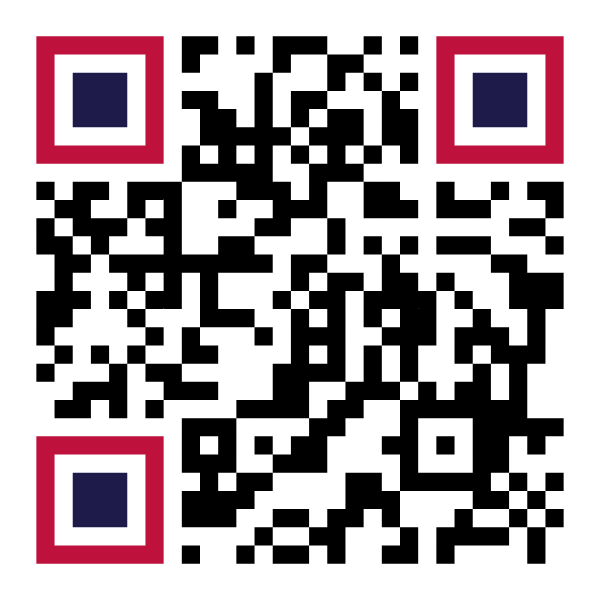

eye-paint

Paints the eyes. EyePaint(paint: null, outer: null, inner: null): both parts, or each apart; any color or gradient.

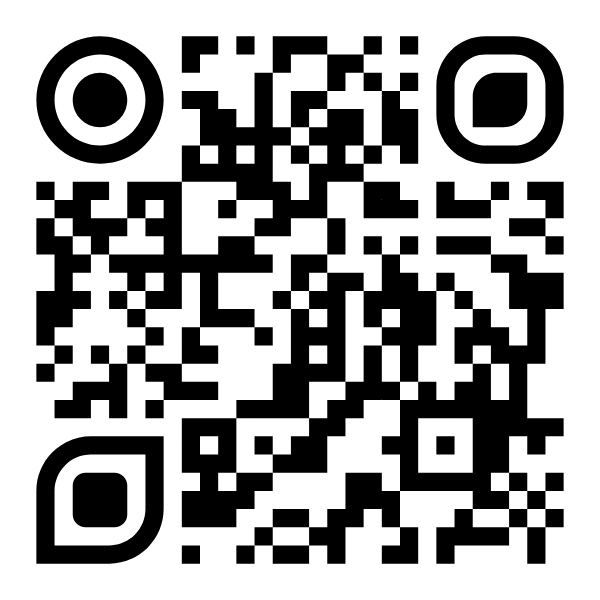

eye-mix

A shape picked per corner. EyeMix(outer: ['circle', 'rounded', 'leaf'], inner: ['circle', 'soft', 'leaf'], seed: 0); registered names, enum cases or shape instances. An empty list leaves that part as it is.

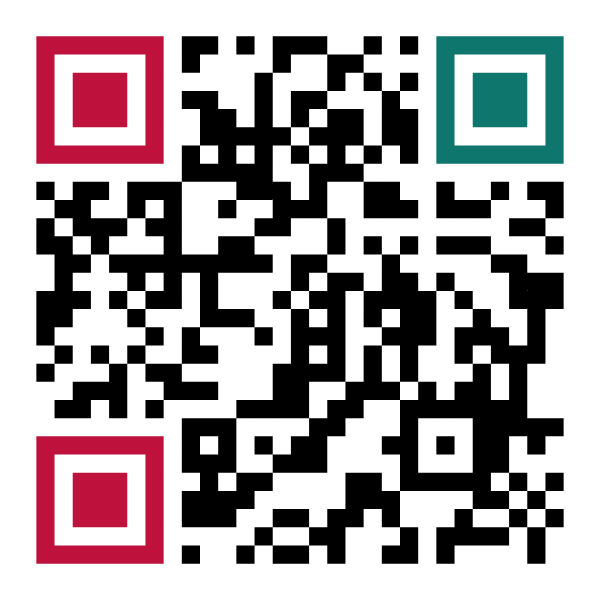

eye-palette

A color picked per corner. EyePalette(colors, weights: null, seed: 0, outer: true, inner: true); weights, one per color, make some come up more often.

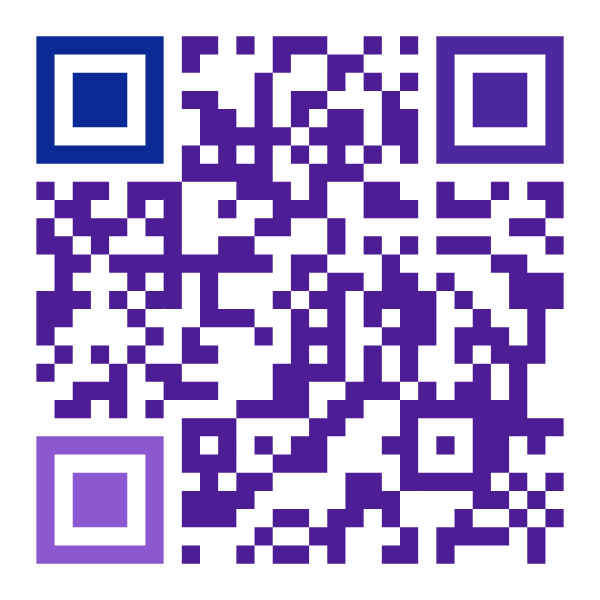

eye-shade

Each corner a little lighter or darker than its color, and its hue a little turned. EyeShade(min: -15, max: 15, hue: 0, seed: 0); lightness in percent, hue in degrees either way. Gradients are left as they are.

eye-jitter

Each eye part turned, sized and faded by an amount of its own. EyeJitter(rotate: 6, size: 0.06, opacity: 0, seed: 0); degrees either way, and shares either way and to fade by.

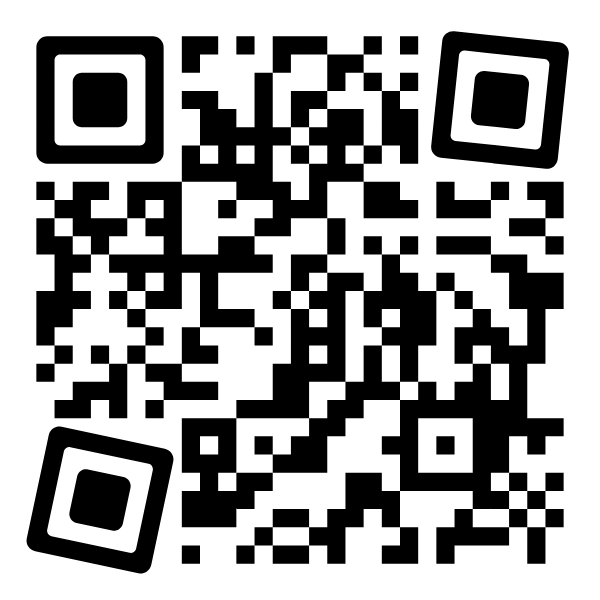

eye-twist

The eyes turned a step further from corner to corner: top left not at all, top right one step, bottom left two. EyeTwist(step: 6, outer: true, inner: true), in degrees.

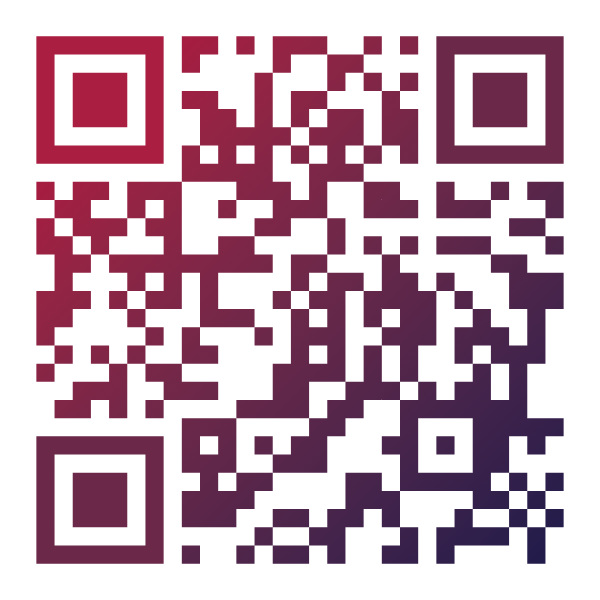

eye-sample

Each eye the color the modules' paint has where the eye sits, so a gradient set with ->paint() runs through the eyes too, each in a single color. EyeSample(outer: true, inner: true). Each layer of a layered paint is sampled on its own; plain colors stay as they are.

eye-echo

The inner eye a lighter or darker echo of the outer eye's color. EyeEcho(lightness: -25), in percent; negative darkens. Gradients are left as they are.

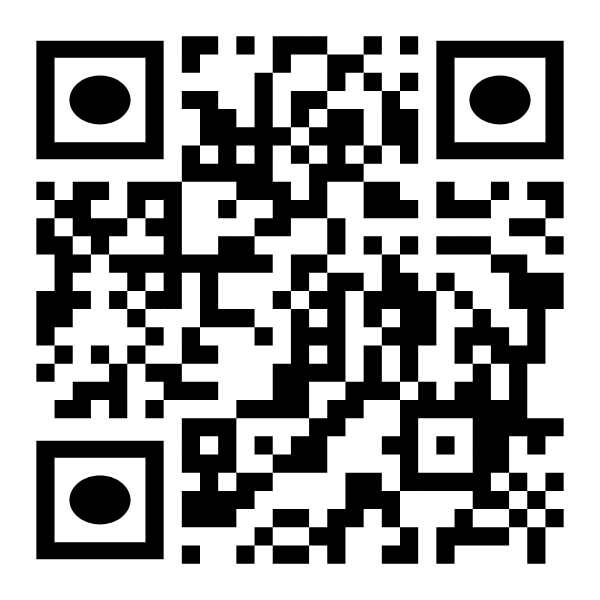

eye-stretch

The eyes wider than tall, or taller than wide. EyeStretch(width: 1.12, height: 0.9, outer: true, inner: true), as shares of the shape's own size.

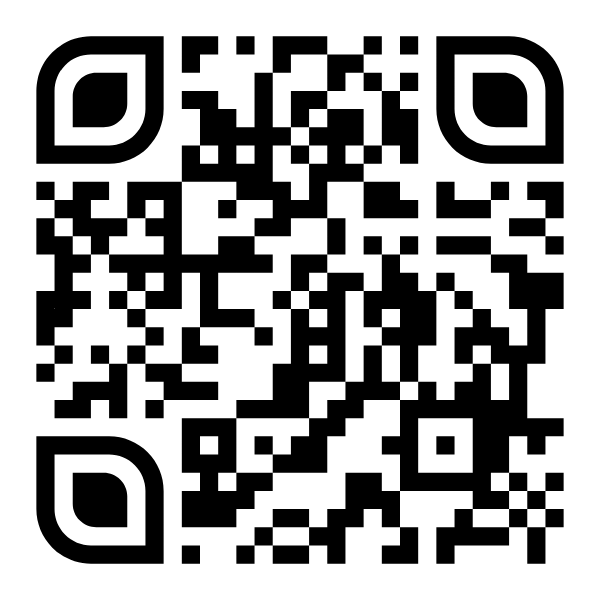

eye-flip

The eyes mirrored, left to right or top to bottom, so a leaf, drop or heart leans the other way. EyeFlip(horizontal: true, vertical: false); limit it to some corners with ->corners().

Choosing where a filter applies

Every built-in filter can be limited to modules of some roles, to a region, or (for eye filters) to some corners:

use ExeQue\Qr\Encoder\Enums\Role;
use ExeQue\Qr\Filters\Region;
use ExeQue\Qr\Rendering\Enums\Corner;

->filter((new MixedRotation(min: 45, max: 45))->only(Role::Timing))

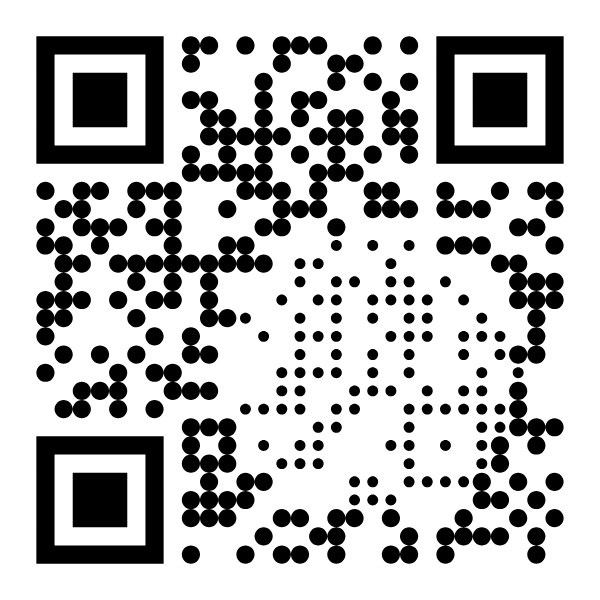

->filter((new MixedSize(min: 0.6))->in(Region::circle(18.5, 18.5, 8)))
->filter((new EyePaint('#be123c'))->corners(Corner::TopLeft))

Roles are data, timing, alignment, format, version, separator and dark-module; the finder patterns are drawn as eyes.

Regions are in modules, from the top-left of the code (its margin left out):

Region
Region::rect($x, $y, $width, $height)	a rectangle
Region::rounded($x, $y, $width, $height, $radius)	a rectangle with rounded corners
Region::circle($x, $y, $radius)	a circle about a point
Region::cells([[$column, $row], ...])	single modules
Region::logo()	the area the code's logo clears

The same can be written as filters that wrap another:

->filter(new ByRole([Role::Timing], new MixedRotation(min: 45, max: 45)))
->filter(new InRegion(Region::circle(18.5, 18.5, 8), new MixedSize(min: 0.55, max: 0.55)))

Several at once

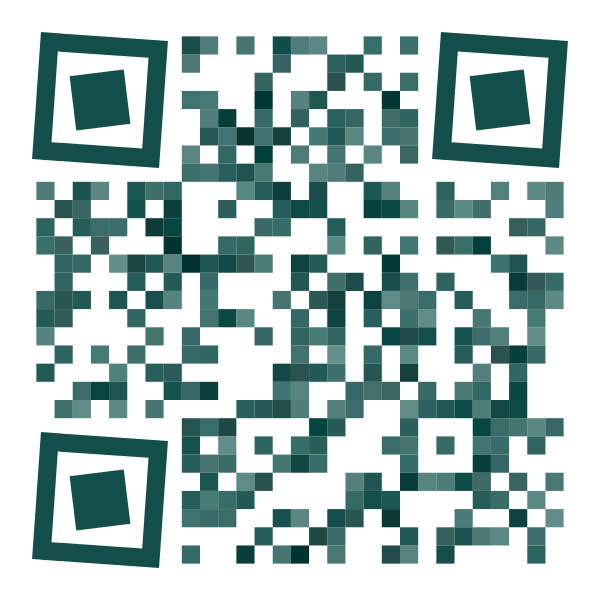

Compound keeps filters together under one name, for a reusable look:

->filter(new Compound(new MixedOpacity(min: 0.75), new MixedShade(), new EyeTilt()))

Your own filters

A closure is a module filter; it gets the cell and its style and returns a style:

use ExeQue\Qr\Rendering\ModuleContext;
use ExeQue\Qr\Rendering\ModuleStyle;

Qr::url($url)->filter(
    fn (ModuleContext $cell, ModuleStyle $style): ModuleStyle => $cell->row % 2 === 0 ? $style->withOpacity(0.8) : $style,
    name: 'striped',
);

A closure has no identity of its own, so give it a name if the code is to be cached; without one the code is drawn fresh each time. ModuleContext tells the column and row, the role, whether neighbors are dark, and gives a stable random number per cell with $cell->random($min, $max, 'purpose').

For anything reusable, write a class implementing ModuleFilter or EyeFilter, and NamedFilter so it can be stored and cached, and register it by name. See Extending.

Filters and scan safety

Filters change exactly what makes codes hard to read. The scan guards run after all filters and hold the result within limits: offsets, sizes, skews, how many modules may be left out, contrast.
