Gradients

A gradient can paint the modules, the background, or each eye on its own.

use ExeQue\Qr\Gradients\LinearGradient;

Qr::url($url)->paint(LinearGradient::make('#be123c', '#1e1b4b')->angle(135));

linear	radial	conic	diamond

All gradients are in ExeQue\Qr\Gradients.

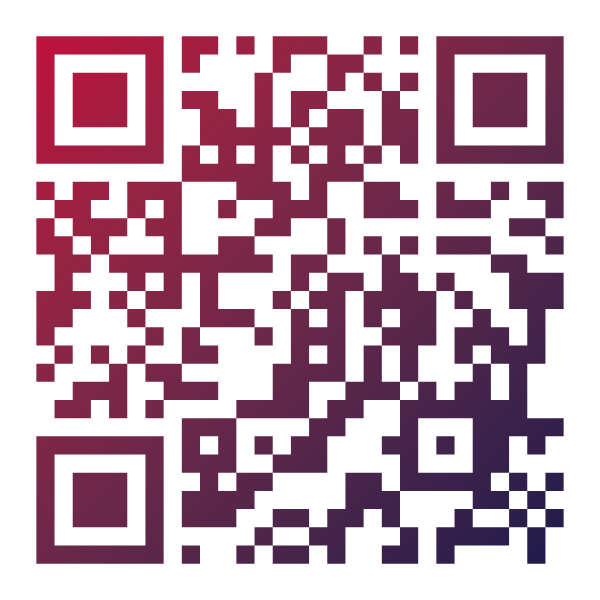

Linear

LinearGradient::make('#be123c', '#1e1b4b')->angle(135);        // degrees as in CSS: 0 runs upwards, 90 to the right, 180 by default
LinearGradient::make('#be123c', '#1e1b4b')->between(0, 0, 1, 1);  // from and to, in the box (0 to 1)

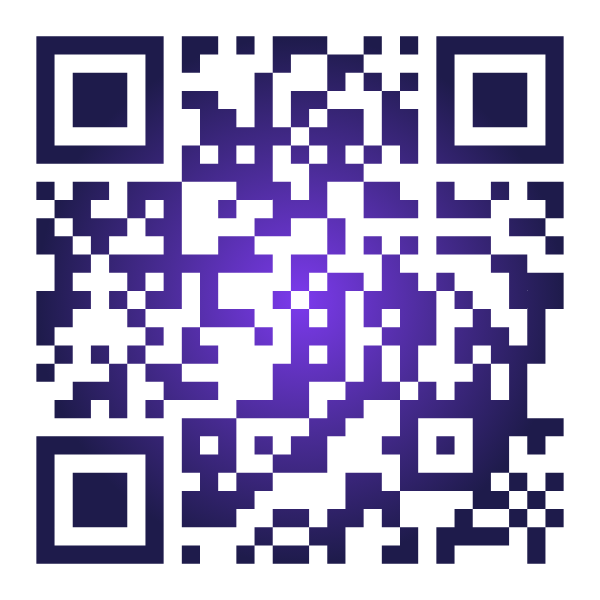

Radial

RadialGradient::make('#7c3aed', '#1e1b4b')
    ->center(0.5, 0.5)
    ->radius(0.5)          // or radius(0.6, 0.4) for an ellipse
    ->focal(0.4, 0.4);     // where it starts, inside the ellipse

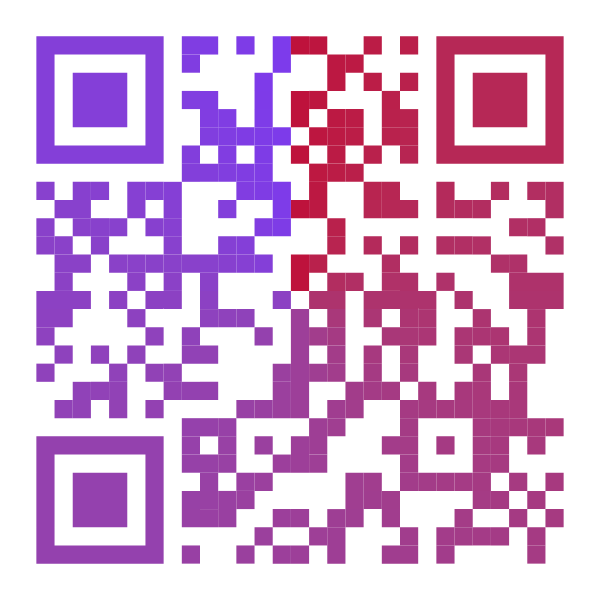

Conic

ConicGradient::make()
    ->stop('#be123c', 0)->stop('#7c3aed', 0.33)->stop('#0f766e', 0.66)->stop('#be123c', 1)
    ->center(0.5, 0.5)
    ->startAngle(90);

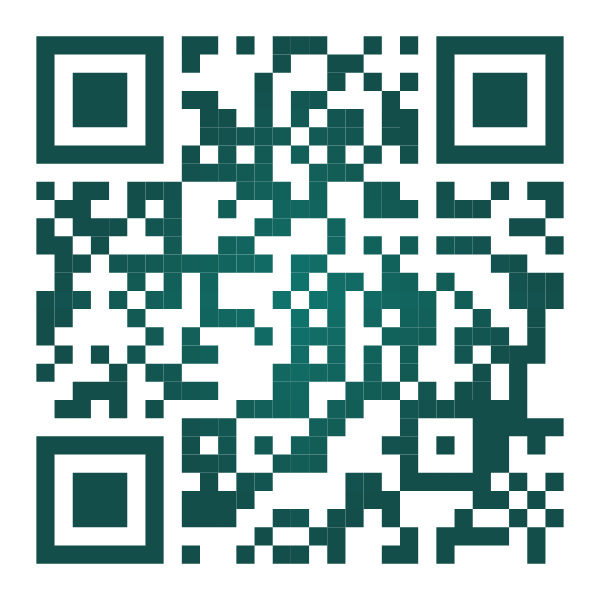

Diamond

DiamondGradient::make('#0f766e', '#134e4a')->center(0.5, 0.5)->radius(0.5);

Mesh

A grid of colors blended between neighbors, for soft washes of several colors:

MeshGradient::make([
    ['#be123c', '#7c3aed'],
    ['#0f766e', '#1e1b4b'],
]);

Stops

make() takes the first and last color, at 0 and 1; to place more, start with make() alone and add each stop in order, at a position from 0 to 1. A hint moves where a stop and the next one meet halfway:

LinearGradient::make()
    ->stop('#be123c', 0)
    ->stop('#7c3aed', 0.4, hint: 0.55)
    ->stop('#1e1b4b', 1);

Two stops at the same position make a hard edge.

Blending

Colors blend in OKLab by default, which keeps the middle of a gradient from going grey or muddy. Any of the CSS spaces can be chosen:

use ExeQue\Qr\Gradients\Enums\ColorSpace;
use ExeQue\Qr\Gradients\Enums\HueInterpolation;

->in(ColorSpace::Srgb)                                  // as older CSS blends
->in(ColorSpace::Oklch, HueInterpolation::Longer)       // round the long way of the color wheel

Spaces: oklab, oklch, srgb, srgb-linear, lch, hsl. Hue interpolation applies to the polar ones (oklch, lch, hsl): shorter, longer, increasing, decreasing.

Beyond its ends a gradient keeps its end colors; it can repeat or reflect instead:

use ExeQue\Qr\Gradients\Enums\Spread;

->spread(Spread::Repeat)
->spread(Spread::Reflect)

What the gradient spans

use ExeQue\Qr\Gradients\Enums\GradientBox;
use ExeQue\Qr\Gradients\Enums\Sampling;

->box(GradientBox::Code)      // the code without its margin: the default
->box(GradientBox::Canvas)    // the whole image, margin included
->box(GradientBox::Shape)     // each module and each eye on its own

->sampling(Sampling::PerModule)   // one flat color per module, taken at its middle

Per-module sampling gives a mosaic look, and keeps each module a single color in SVG and PNG alike.

Gradients in each eye

use ExeQue\Qr\Rendering\Enums\Corner;

Qr::url($url)->eyes(fn (EyesBuilder $eyes) => $eyes
    ->paint(RadialGradient::make('#be123c', '#1e1b4b')->box(GradientBox::Shape)));

Layered paints

Paints can be stacked on the same shapes, the first at the bottom. Each layer is a color or a gradient, faded in by its opacity (0 to 1) on top of any alpha its colors have:

use ExeQue\Qr\Paints\Layered;

Qr::url($url)->paint(
    Layered::make(LinearGradient::make('#1e1b4b', '#7c3aed')->angle(135))
        ->layer(RadialGradient::make('#be123c', '#1e1b4b')->center(0.3, 0.3), 0.5)
);

Qr::url($url)->background(Layered::make('#ffffff')->layer('#fde68a', 0.3));

A layered paint goes wherever a paint does: the modules, the background, each eye and a logo's plate. Each layer keeps its own settings, so one can span the code while the next spans each shape. Stored, it is ['layers' => [['paint' => ..., 'opacity' => ...], ...]].

The contrast checks count the colors of every layer.

Output

SVG output writes linear and radial gradients as native SVG gradients, and draws the others from samples. Raster output draws every kind. A gradient is stored by its registry name and settings, so codes painted with one can be cached and their styles stored; see Extending for gradients of your own.
